A curved roller conveyor is the ideal solution for unit handling applications because it enables seamless, continuous product flow through turns, changes in direction, and complex routing layouts without sacrificing speed or product stability.
By integrating these systems, businesses can transform static floor plans into dynamic logistics networks. Whether you are managing small parcel shipping or larger palletized loads, understanding how to select and implement these systems is crucial for maximizing efficiency. This article will explore the technical nuances, benefits, and design considerations required to optimize your facility’s material handling flow using high-performance conveying solutions.
Section | Summary |
Understanding Curved Roller Conveyors | Explains the fundamental mechanics, design, and purpose of these units in modern logistics. |
Key Benefits for Unit Handling | Details the efficiency gains, space optimization, and operational improvements provided by these systems. |
Design Considerations and Specifications | Highlights critical technical factors such as turn radius, load capacity, and material selection for longevity. |
Maintenance and Longevity Best Practices | Outlines proactive measures to ensure system reliability and minimize downtime in high-traffic environments. |
Selecting the Right System | Provides a framework for evaluating technical requirements to choose the best-fitting conveying hardware. |

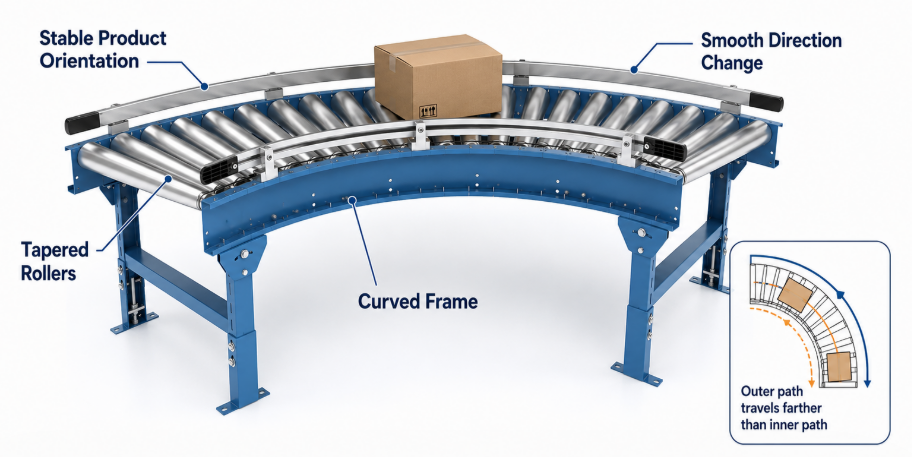

Curved roller conveyors are specialized material handling units engineered to change the direction of goods in transit by utilizing tapered rollers or precision-aligned cylindrical rollers mounted on a curved frame, ensuring that products maintain their orientation and stability throughout the turn.

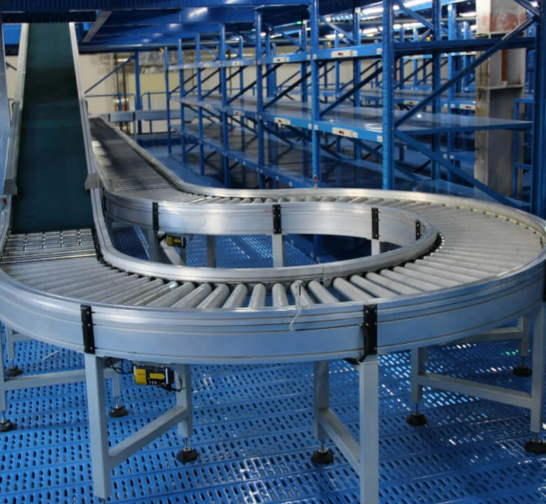

These systems are the backbone of non-linear transport within automated facilities. Unlike straight-run conveyors that occupy fixed paths, these curved modules allow designers to navigate around structural columns, optimize the footprint of sorting areas, and create ergonomic workstations. By utilizing a durable curved roller conveyor, facility managers can ensure that goods move fluidly across 45, 90, or even 180-degree angles without jamming or losing tracking.
The mechanical principle behind these systems relies on the variance in surface speed. As a package travels along a curve, the outer edge of the package must travel a longer distance than the inner edge in the same amount of time. Tapered rollers compensate for this by providing a faster surface speed on the outside diameter compared to the inside, effectively guiding the package through the turn. This ensures that the product remains square to the conveyor frame, preventing skewing that could lead to crashes or system stops.
Furthermore, these systems are highly adaptable to various load profiles. Whether handling lightweight polybags or heavy cardboard cartons, the engineering of the rollers and the drive mechanism—often using chains, belts, or O-rings—is calibrated to maintain consistent motion. As logistics demands shift, the ability to reconfigure these curves allows for agile facility management, ensuring that the throughput remains consistent regardless of the facility's physical constraints.
The primary benefits of implementing these systems include superior spatial utilization, reduction in manual material handling, enhanced sorting accuracy, and the ability to maintain continuous high-speed throughput in limited floor spaces.
When you integrate a custom-engineered curved conveyor, you are essentially unlocking the ability to design a workflow that fits the building, rather than forcing the building to fit the workflow. This flexibility is vital in urban fulfillment centers where square footage is at a premium. By utilizing vertical space and tight-radius turns, facilities can double their routing capacity within the same footprint.
Beyond space, these conveyors significantly enhance operational consistency. Here are the core advantages:
Increased Throughput: By automating the transition between zones, these systems eliminate bottlenecks often found at manual transfer points.
Damage Prevention: Smooth transitions through turns reduce the impact forces on fragile products, maintaining package integrity.
Operational Safety: Automating the movement of goods around corners removes the need for personnel to manually reposition items, reducing repetitive strain injuries.
Routing Flexibility: Systems can be integrated into existing lines, allowing for the creation of loop circuits or complex distribution paths.
Data comparison shows that facilities utilizing advanced conveying curves experience a 25% reduction in sortation errors compared to those relying on manual sorting or fixed-angle chutes. By keeping the unit centered on the rollers, these systems ensure that the barcode or label remains oriented correctly for overhead scanning equipment, which is critical for high-speed automated sorting processes.
Effective design for these systems requires a careful analysis of the product dimensions, weight, turn radius, and belt speed to ensure that the centrifugal forces exerted during a turn do not compromise package stability.
When planning a layout, engineers must account for the relationship between the inner radius and the product size. If the radius is too tight for the product being handled, the item may overhang the edges or skew, leading to jams. A high-quality precision curved roller conveyor system must be selected based on the specific load requirements.
Several technical specifications should be evaluated during the procurement phase:
Specification | Importance |
Turn Radius | Determines the floor space footprint and the capability to handle specific product lengths. |
Roller Taper | Critical for maintaining package orientation; must be matched to the speed of the line. |
Load Capacity | Defines the structural integrity of the rollers and the frame to prevent bending under heavy loads. |
Surface Material | Options like steel, plastic, or PVC depend on the fragility of the product and environmental conditions. |
Furthermore, the drive mechanism is a vital consideration. For high-speed applications, line-shaft or belt-driven curves provide the necessary torque to keep products moving smoothly. In zero-pressure accumulation systems, segmented rollers allow the conveyor to stop items without them touching each other, which is essential for protecting delicate goods before they enter a sorting area.
Maintaining curved conveyor systems requires a proactive schedule focusing on roller alignment, bearing lubrication, and drive component inspection, as these areas experience the highest level of mechanical stress during daily operations.
Because these units handle the stress of changing direction, they are subject to more wear and tear than straight sections. Implementing a reliable curved roller conveyor solution is only the first step; keeping it operational requires a rigorous maintenance program.
Key maintenance strategies include:
Regular Alignment Checks: Ensure that all rollers are perfectly square to the frame to prevent uneven wear or belt tracking issues.
Lubrication Protocols: If using chain-driven systems, ensure that chains are cleaned and lubricated according to the manufacturer’s schedule to prevent friction build-up.
Sensor Calibration: Verify that photo-eyes and accumulation sensors are clean and properly aligned to ensure smooth hand-offs between sections.
Debris Removal: Small debris can easily get caught between rollers in a curved section, which can cause motor strain or component failure.
By conducting quarterly audits of the drive belts or chains and monitoring motor amperage, maintenance teams can identify potential failure points before they lead to system downtime. Proactive care ensures that the high-throughput benefits of your conveyor network are not lost to unexpected interruptions.
Choosing the right conveying equipment is a strategic decision that impacts the long-term ROI of your logistics operations. While price is always a factor, the quality of the engineering and the precision of the roller assembly play a larger role in total cost of ownership.
To select the right system, evaluate your facility's specific needs:
Analyze your product mix: Are you moving uniform cardboard boxes, or are you handling a wide range of irregular sizes?
Consider environmental factors: Does the facility have high humidity or dust levels? These may require sealed bearings or stainless steel finishes.
Future-proof your layout: Ensure that the curves you choose are modular and compatible with future expansions of your sorting or packing areas.
Ultimately, a well-designed conveyor system serves as the arteries of your warehouse. By investing in high-quality hardware and adhering to strict maintenance protocols, you create a facility that is not only efficient today but also capable of scaling with the future demands of your market.
In summary, curved roller conveyors are indispensable for modern unit handling applications. By leveraging the physical principles of tapered rollers to manage the trajectory of goods, these systems solve the dual challenge of limited space and the need for high-speed throughput. From careful design planning to rigorous maintenance, the implementation of these conveyors facilitates a seamless, automated workflow that significantly reduces manual labor and improves sorting accuracy. As your facility grows, prioritizing quality and configuration flexibility will ensure that your material handling backbone remains a competitive advantage.
