What is curved conveyor belt?

A curved conveyor belt is an engineered material handling mechanism designed to transport items along a curved path without disturbing product alignment or requiring manual intervention.

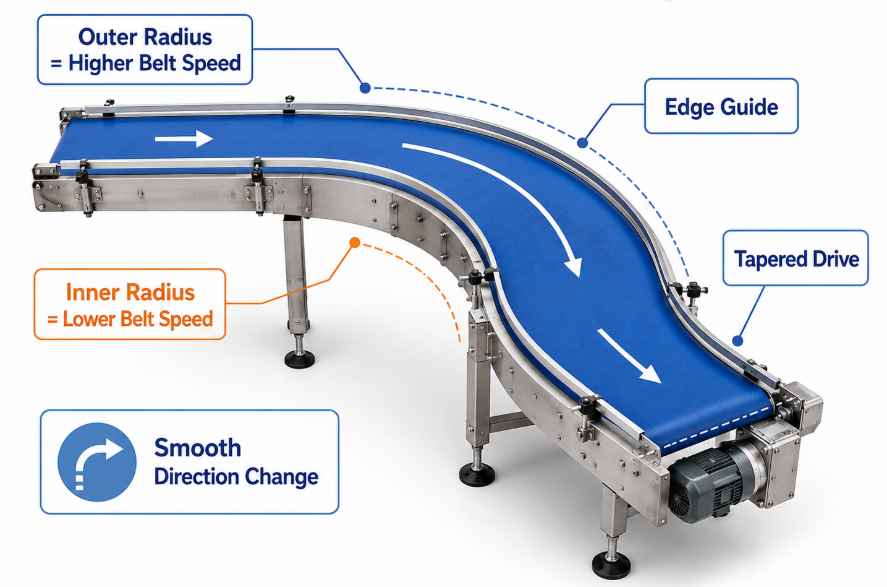

The operational mechanics of a curved conveyor belt rely on a radial drive design combined with conical end pulleys or edge guide bearings. Unlike standard linear belt conveyors that pull the belt evenly across a parallel axis, a curved conveyor belt experiences variable linear velocity across its surface. The outer radius travels at a significantly higher speed than the inner radius. To accommodate this differential, specialized construction methods are employed, including modular plastic links with expandable pitch or flexible polyurethane belts fitted with edge guide chains or tapered drive rollers.

From an engineering perspective, the maintenance of uniform tension across the radial arc is critical. Tension distribution must prevent the belt from shifting inward under load. Tapered pulleys ensure that the tangential velocity of the pulley surface matches the varying linear velocity of the belt across its entire width. Engineers often incorporate positive chain-driven edges or precision guide rollers along the outer perimeter to absorb centrifugal forces and maintain consistent trajectory control for delicate or heavy unit loads alike.

When selecting advanced conveying equipment, integration of a high-performance curved belt conveyor enables uninterrupted processing flows while reducing physical mechanical transfers. Modern industrial applications require these systems to execute smooth, low-friction transitions between intersecting process lines, preserving delicate product orientation during continuous manufacturing cycles.

Maintenance Guidelines for Radial Tracking: Inspect edge guide bearings every 500 operating hours to check for uneven wear caused by radial vector forces. Ensure that inner and outer drive tensioners maintain balanced alignment, preventing localized belt stretch along the outer perimeter.

Role of curved Conveyor Belt

The primary role of a curved conveyor belt is to optimize facility space and maintain seamless continuous product flow around structural obstacles without interrupting line velocity.

In automated industrial processing, linear space is frequently constrained by building walls, existing machinery, and work-cell layouts. Incorporating a curved conveyor belt allows engineering teams to bend conveyance paths around structural pillars or redirect materials through tight 90-degree or 180-degree turnarounds. By replacing complex dead-plate transfers, side pushers, or rotating turntables with a continuous curve, the system eliminates mechanical transfer points where light or unstable items often tip, jam, or experience damage.

Furthermore, maintaining constant product orientation along a curved path is paramount for downstream automation, such as robotic pick-and-place stations, automated vision inspection, and barcode scanning systems. When products travel through a curved conveyor belt, the differential belt speed matches the natural arc radius, allowing packages or food products to exit the turn in the exact relative position in which they entered. This precise kinematic control reduces processing errors and eliminates the need for expensive re-orientation machinery downstream.

To fully appreciate the operational benefits and structural considerations of curve integration, technical teams frequently review detailed resources like Curved conveyors technical overview to evaluate velocity profiles and load dynamic metrics. Proper engineering of the curve profile directly enhances overall line throughput and operational efficiency.

Small Conveyor Belt Types & Applications Guide

Small curved conveyor belts are compact, high-precision handling systems designed for micro-conveying, electronics assembly, pharmaceutical sorting, and lightweight packaging applications.

Micro and small curved conveyor systems typically utilize ultra-thin flexible belts made of polyurethane or silicone, operating over small knife-edge rollers with diameters as small as 8 mm to 15 mm. These small transfer diameters are essential when handling tiny components, such as blister packs, medical vials, semiconductor trays, or delicate confectionery items, preventing products from falling into transfer gaps. The design demands high precision machining of internal support plates and ultra-low friction slider beds to keep operational torque minimal.

European design preferences increasingly favor modular small curved conveyor units equipped with integrated 24V DC brushless motor drives inside the rollers. This decentralized drive approach provides precise speed control, energy efficiency, and compact footprints. European manufacturing environments emphasize modularity, fast interchangeability, and cleanroom compatibility, driving demand for small curve conveyors with toolless quick-release belt replacement mechanisms.

Implementing a precision-built curved belt conveyor system within small-footprint assembly cells ensures consistent material transfer without compromising speed or positional accuracy. These compact designs maximize usable floor space in high-density automated manufacturing environments.

How To Choose the Right Baking Conveyor Belt for Bread

Selecting the right baking conveyor belt for bread requires balancing high-temperature resistance, hygienic non-stick material properties, and gentle thermal transition dynamics during cooling curves.

In automated commercial baking lines, dough pieces and fresh hot bread exit ovens at temperatures exceeding 200 degrees Celsius and must undergo controlled cooling while traveling through multi-tier spiral or 90-degree curve layouts. The curved conveyor belt used in this stage must withstand residual thermal stress without warping or outgassing. Blue food-grade silicone or open-mesh modular plastic belts with high temperature tolerance are standard choices to promote airflow and prevent heat retention under the baked goods.

Why do engineering teams favor open-grid modular plastic or high-grade silicone curved belts for bread handling? Bread dough and freshly baked crusts release moisture and oil, which can cause sticking on solid belt surfaces. Open-mesh curved belts allow cross-flow ventilation beneath the bread, promoting uniform cooling and preventing condensation buildup on the underside of the product. European industrial bakeries heavily favor tight-radius open-grid curved belts because they optimize ambient cooling tunnel lengths while strictly maintaining European Hygienic Engineering & Design Group compliance standards.

How to Select the Best Material for Food Conveyor Belts

Selecting the best food-grade material for curved conveyor belts involves evaluating chemical resistance, allergen transfer mitigation, mechanical wear, and compliance with FDA and EU food safety standards.

Material selection directly dictates the operational lifespan and sanitary safety of food conveyance systems. Standard material options for curved conveyor belts include Thermoplastic Polyurethane (TPU), Polyvinyl Chloride (PVC), Polypropylene (PP), Polyethylene (PE), and Acetal (POM). In raw food, meat, and poultry processing, non-porous TPU is highly preferred due to its resistance to animal fats, oils, and harsh sanitizing chemicals such as chlorine and quaternary ammonium compounds. TPU does not micro-crack under operational flexing, preventing bacterial harborage points like Listeria or Salmonella.

Why is TPU becoming the default choice over traditional PVC in high-spec food plants? European food processing directives mandate strict limitations on plasticizer migration into food products. TPU contains no plasticizers, retains flexibility across low-temperature processing environments, and offers superior cut and abrasion resistance. Consequently, engineering designs for European food facilities overwhelmingly specify blue TPU curved belts with anti-microbial additive integration.

Deploying an industrially certified curved belt conveyor equipment solution manufactured with FDA-compliant materials safeguards product purity while extending belt operational longevity in demanding washdown environments.

How to Choose the Right Packing Conveyor Belt

Choosing the right packing curved conveyor belt requires matching belt surface friction, load ratings, tracking mechanisms, and line speeds to specific secondary packaging and parcel sorting requirements.

In high-speed packaging and fulfillment centers, curved conveyor belts must handle diverse package types, ranging from cardboard cartons and polybags to plastic totes and shrink-wrapped bundles. Choosing between a high-friction top surface belt and a low-coefficient modular plastic belt depends on whether the application requires incline acceleration or controlled accumulation. For high-speed parcel induction, high-friction rubber or textured PVC top curves are essential to prevent package sliding during rapid 90-degree directional changes.

Key customer priorities in modern logistics centers center on reducing operational downtime, minimizing noise emissions, and achieving high line speeds up to 100 meters per minute. What structural configurations do logistics clients prioritize? European logistics hubs prioritize positive chain-guided curved belts equipped with quick-change belt splice designs. Positive drive systems eliminate belt slip under heavy load acceleration and maintain precise tracking regardless of lateral forces exerted by off-center packages.

Conclusion

Curved conveyor belts represent a cornerstone technology in modern automated material handling, bridging the gap between space constraints and line efficiency. By accommodating complex radial trajectories through precise mechanical designs—such as tapered pulleys, positive edge guide chain drives, and modular plastic linkages—these systems eliminate operational bottlenecks while protecting product structural integrity. Whether integrated into high-speed parcel logistics, stringent cleanroom food processing lines, or compact assembly cells, selecting the correct belt material, drive mechanism, and curvature radius ensures maximum uptime, low maintenance overhead, and long-term operational performance across industrial manufacturing facilities globally.
