Introduction to Curved Belt Conveyor Technology

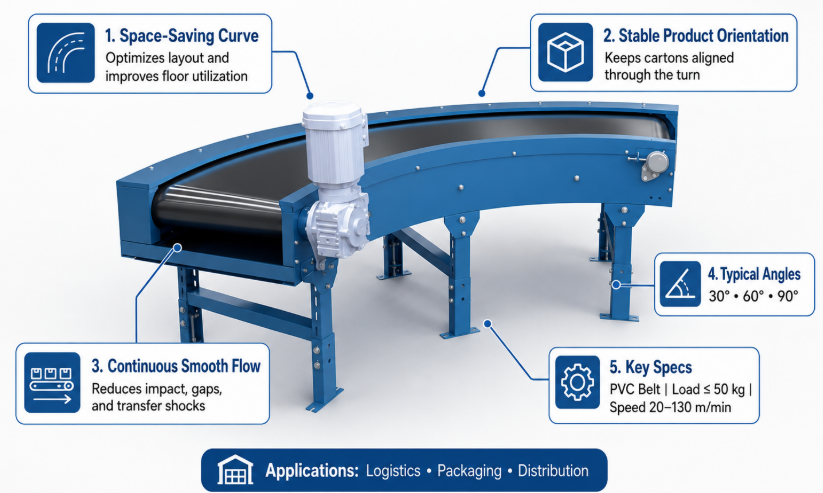

A Curved Belt Conveyor is a specialized industrial material handling system designed to transport unit loads across angular paths ranging from 30 degrees to 180 degrees while maintaining continuous product alignment and velocity.

Material handling layouts in modern industrial facilities rarely enjoy the luxury of endless, unobstructed linear space. Production lines must navigate support columns, localized machinery, processing stations, and facility walls. Traditionally, changing the direction of travel required right-angle transfer units, drop-and-turn transfers, or multi-strand chains. However, these traditional transfer mechanisms introduce significant operational risks: product orientation is disrupted, fragile goods risk impact damage, and small items can fall into transfer gaps.

A Curved Belt Conveyor solves these mechanical limitations by offering a continuous, smooth carrying surface throughout a curve. Unlike straight belts, which experience uniform cross-sectional tension, a curved belt must manage differential linear speeds. The outer edge of the belt travels a significantly longer circumferential distance than the inner edge over the same angular movement. To maintain stability, the belt fabric is precision-cut into conical segments, supported by tapered drive and tail pulleys, and guided along its outer perimeter by continuous precision bearings or chain guides.

From a structural engineering perspective, why is this conical design necessary? If a standard flat conveyor belt is forced into a curved geometry, severe lateral tracking forces cause the belt to fold, buckle, and migrate toward the center of the turn radius. By engineering the frame with a defined center point and manufacturing the belt as a segment of a cone, the system achieves true radial movement. Every point on the belt surface moves at an angular velocity proportional to its radius, allowing unit loads whether heavy corrugated boxes, delicate packaged foodstuffs, or loose airport luggage to navigate turns smoothly without slipping, tumbling, or colliding.

Core Spatial and Workflow Advantages

Curved belt conveyors optimize plant floor utilization by replacing bulky right-angle transfers with compact continuous curves, significantly reducing required equipment footprints.

When designing a greenfield manufacturing facility or retrofitting an existing warehouse layout, floor space utilization directly impacts capital return. Integrating curved conveying sections delivers measurable mechanical and operational benefits across several functional categories:

1. Elimination of Dead Footprint Zones

Linear conveyor configurations with 90 degree pop-up transfers or turn-table modules demand substantial square footage. A pop-up transfer unit requires a square box area equal to the longest diagonal length of the largest conveyed item, plus safety margins. Conversely, a continuous Curved Belt Conveyor system wraps tightly around plant obstructions, columns, and structural walls. This continuous arc eliminates dead corner space, allowing facilities to place processing machinery or secondary assembly stations directly adjacent to the turn radius.

2. Preservation of Product Orientation and Spacing

In automated scanning, weighing, barcoding, and sorting operations, maintaining precise product spacing pitch and directional orientation is critical. When a package hits a traditional right-angle pusher or pop-up roller, its orientation shifts by 90 degrees, often scrambling barometric alignment and altering gaps between items. A curved belt conveyor maintains fixed relative positioning between the product and the belt surface. A box entering the curve aligned longitudinally exits the curve in the exact same orientation relative to its vector, preventing line jams and eliminating the need for expensive downstream re-orienting equipment.

3. Continuous Velocity and Higher Throughput Capabilities

Discontinuous transfers require items to slow down, stop, or undergo abrupt acceleration shifts during direction changes. This speed limitation bottlenecks the entire line speed. Curved belt conveyors operate at continuous high speeds frequently exceeding 2.5 to 3.0 meters per second. Because there is no impact forces or direction-change delays, throughput capacity increases exponentially without increasing line friction or energy consumption.

4. Gentle Material Handling for Fragile Goods

In pharmaceutical, electronics, and food packaging industries, mechanical shock during transfer points leads to high product damage rates. The continuous surface of a curved belt supports the full bottom profile of the conveyed item throughout the turn radius. By eliminating transfer gaps, drop heights, and mechanical pusher impacts, product degradation is virtually eliminated.

Engineering Principles and Mechanical Kinematics

The kinematics of a curved belt conveyor rely on radial tension balancing, conical pulley geometry, and continuous perimeter guide systems to counteract inward lateral pull forces.

Understanding the physics of a curved belt conveyor requires analyzing the vector forces active during rotation. When a tensioned belt moves along a curved path, the longitudinal tension forces in the belt generate a net radial force vector directed toward the curve center of rotation. Without structural counter-mechanisms, this force would immediately pull the belt off its support rollers toward the inside radius.

To counteract this inward radial force, mechanical engineers implement three core structural strategies:

Conical Pulley Dynamics

The end rollers pulleys on a curved belt conveyor are not cylindrical; they are precisely machined conical profiles. The outer diameter of the pulley is larger than the inner diameter. This diameter taper ensures that the surface speed of the pulley at any given radius matches the theoretical linear speed of the belt at that exact distance from the center point. Mathematically, the linear velocity V at radius R is expressed as:

V = w * R

Where w is the constant angular velocity of the drive shaft. By matching the pulley pitch diameter to the belt radial path, pure rolling contact is achieved across the entire face of the pulley, preventing severe scrub wear and localized belt burning.

Perimeter Edge Guide Systems

To continuously absorb the inner radial force generated by belt tension, the outer edge of the curved belt is equipped with a specialized guidance assembly. There are two primary engineering approaches used in modern manufacturing:

1. Sealed Precision Bearing Wheels: Precision ball bearings are mounted horizontally along the outer perimeter of the belt at close pitch intervals. These bearings run inside an extruded steel or heavy-duty aluminum guide track. The bearings take the heavy inward thrust load while allowing the belt to move forward with minimal frictional resistance.

2. Guide Chains and Positive Drive Sprockets: For heavy-duty industrial applications, a continuous roller chain is attached to the outer edge of the belt fabric. Positive drive sprockets engage the chain along the outer radius, driving the belt directly and structurally absorbing all inward tensile forces.

Radial Tension Distribution

Due to the geometry of the curve, tensile stresses are not distributed evenly across the belt width. The outer perimeter experiences higher total stretch than the inner perimeter. Modern heavy-duty curved belts are manufactured using multi-ply synthetic carcass materials typically interwoven polyester warp and polyamide weft fibers that provide high lateral rigidity while maintaining longitudinal flexibility around the conical drive drums.

Technical Specifications and System Anatomy

A curved belt conveyor consists of precision-engineered components designed to handle multi-axial mechanical stresses, heavy unit loads, and continuous high-speed movement.

To evaluate curved belt conveyor systems effectively, engineers must analyze the structural specifications of the drive train, frame assembly, belt construction, and radial tolerances.

Drive System Architecture

Curved belt conveyors utilize direct-shaft mounted gearmotors or motorized head pulleys. To accommodate varying spatial constraints, drive units can be configured in several positions:

1. Outer Radius Head Drive: Positioned at the discharge end on the outer arc. This offers optimal mechanical leverage, as torque is applied at the point of maximum radial distance and speed.

2. Under-Mounted Central Drive: Positioned beneath the frame return bed. This configuration keeps the overall machine profile narrow, allowing close placement beside walls or parallel conveyor lines.

3. Shaft-Mounted Direct Drive: Directly coupled to the conical drive drum shaft, minimizing drive chain maintenance and power transmission losses.

Frame and Slider Bed Structure

The slider bed supports the active load-carrying belt. In high-precision curved conveyors, slider beds are laser-cut from high-grade stainless steel or low-friction structural steel plates. The surface is often finished with low-friction polymer sheets such as UHMW-PE to lower the coefficient of friction between the underside of the belt and the bed frame. This design reduces motor load, lowers operating noise levels below 65 dBA, and extends belt backing service life.

Key Industrial Applications

Curved belt conveyors are vital components across logistics, airport operations, food manufacturing, and industrial packaging lines.

1. Airport Baggage Handling Systems BHS: Airport baggage conveyance demands extreme mechanical reliability under unpredictable shock loads. Luggage items range from soft fabric bags to heavy, irregular hard-shell cases. Curved belt conveyors operating in airports must run continuously at speeds exceeding 2.5 m/s, navigating tight structural turns within baggage handling basements. These belts require flame-retardant materials, high static dissipation characteristics, and heavy-duty outer perimeter bearing guides capable of enduring heavy dynamic impacts.

2. Parcel and E-Commerce Distribution Centers: In automated distribution facilities operated by global logistics networks, throughput speeds determine daily operational efficiency. Curved conveyors seamlessly connect high-speed linear sorters, induct lines, and incline spirals. By using robust industrial Curved Belt Conveyors, facility engineers prevent parcel collision and tumbling, ensuring high optical read rates for overhead automated barcode scanners.

3. Food Processing and Packaging Lines: In food manufacturing plants, space is tight due to sanitation washdown zones and environmental climate control modules. Curved belt conveyors engineered for food processing feature open-frame 304 or 316 stainless steel designs, quick-release mechanism latches for rapid sanitization, and FDA/USDA-compliant Polyurethane PU belts. Small end-pulley diameters knife-edge transfers allow smooth, gap-free handling of small or delicate food products, such as baked goods, raw proteins, and trayed meals.

4. Automotive and Heavy Industrial Component Manufacturing: Heavy assembly plants transport bulky components such as engine blocks, stamped metal panels, and battery packs between robotic cells. Curved belt conveyors built for these environments incorporate reinforced steel frames, impact-absorbing bed rollers, and rubber-coated reinforced belts capable of withstanding oil exposure, abrasive dust, and high point loads.

Integration and Selection Criteria

Selecting the correct curved belt conveyor requires analyzing key operational factors: inside radius, load metrics, belt speed, and environmental exposure.

When integrating a curved conveyor into an automated material transport line, engineers must avoid standard off-the-shelf assumptions. The system must be mechanically calculated based on the specific physical properties of the items conveyed and the layout constraints of the facility.

Calculating the Inside Radius IR and Belt Width BW

The geometry of the curve must accommodate the maximum physical dimensions of the largest item moving through the line. When a rectangular box travels around a curve, its inner and outer corners sweep out a wider radial path than its static width.

To calculate the required effective belt width BW, engineers use the inner radius R1 and outer radius R2 formula considering package length L and package width W:

R2 = sqrt( (R1 + W)^2 + L^2 )

BW = R2 - R1 + C

Where C is the safety clearance margin typically 50 mm to 100 mm on each side. If the inside radius is selected too small relative to package length, the item leading corner will overhang the belt edge or collide with side guards, leading to structural line jams.

Motor Sizing and Drive Dynamics

Because curved belts experience additional sliding friction along their perimeter guidance bearings, motor sizing must account for both linear payload weight and radial load friction factors.

• Total Payload P: Sum of maximum simultaneous product weights on the curve surface in kg.

• Coefficient of Friction u1: Slider bed friction typically 0.20 to 0.25 for standard belts on steel beds.

• Perimeter Guide Friction u2: Radial force bearing resistance factor typically 0.05 to 0.10 for precision ball bearings.

Motor power calculations must include a safety margin factor Sf of at least 1.3 to 1.5 to handle dynamic startup torque when the conveyor is fully loaded.

Preventive Maintenance and Operational Longevity

Rigorous preventive maintenance focusing on edge bearing lubrication, belt tension tracking, and conical pulley alignment is essential for maximizing operational lifespan.

A curved belt conveyor is a precision machine. Because it handles compound mechanical forces, neglecting maintenance leads to premature belt wear, elevated noise levels, and guide bearing failure.

Daily and Weekly Inspection Protocols

1. Visual Belt Edge Inspection: Inspect the outer perimeter edge of the belt for fraying, cracking, or detachment from the guide strip. Any localized tears indicate misaligned guide track bearings or debris buildup.

2. Bearing Track Cleanliness: Ensure the perimeter bearing track is free from packaging dust, plastic strapping debris, or spilled product. Contaminants inside the guide track increase radial friction, overloading the drive motor.

3. Noise Level Audit: A sudden increase in squealing or metallic clicking along the outer arc points directly to a seized perimeter bearing wheel. Damaged bearings must be replaced immediately to prevent gouging the guide channel.

Monthly and Quarterly Calibration Tasks

1. Tension Calibration: Unlike straight belts where tension is measured linearly across the bed, curved belt tension must be verified at both the inner and outer radius tensioning blocks. Over-tensioning the inner radius causes the belt fabric to stretch unevenly, leading to puckering along the inner slider bed.

2. Conical Pulley Alignment Check: Verify that the tapered end pulleys remain strictly perpendicular to the frame center lines. Minor pulley shaft misalignment causes severe tracking errors that cannot be compensated for by edge bearings alone.

Maintenance Expert Tip: Perimeter Guide Bearing Health and Lubrication

The perimeter bearing assembly endures up to 80 percent of all lateral stresses in a curved conveyor system. For smooth performance and long service life, inspect the outer guide track every 500 operating hours. Wipe down the bearing channels with a non-solvent degreaser and apply a dry-film PTFE lubricant to prevent dust accumulation. Never apply heavy tacky grease to open bearing tracks, as ambient paper dust and particulate matter will bind to the grease, turning it into an abrasive grinding compound that destroys guide wheels and increases motor current draw.

By carefully matching structural specifications to operational requirements, facility engineers can utilize curved conveyor belts to maximize available floor space, streamline line efficiency, and ensure reliable material handling across any industrial environment.
