Curved conveyor system perfect integrated docking method

Achieving a perfect integrated docking method for a Curved Belt Conveyor system requires precise mechanical tangential alignment, dynamic speed synchronization, optimized radial transition geometry, and robust structural interlocking frameworks that maintain continuous belt tension and eliminate transfer gap pinch points across high-speed industrial processing lines.

Table of Contents

1. Kinematic Fundamentals of Curved Conveyor Docking

2. Precision Mechanical Alignment and Frame Interlocking Methods

3. Speed Matching and Mechatronic Control Synchronization

4. Transition Geometry and Edge Support Engineering

5. Maintenance Protocol and Preventive Operational Guidelines

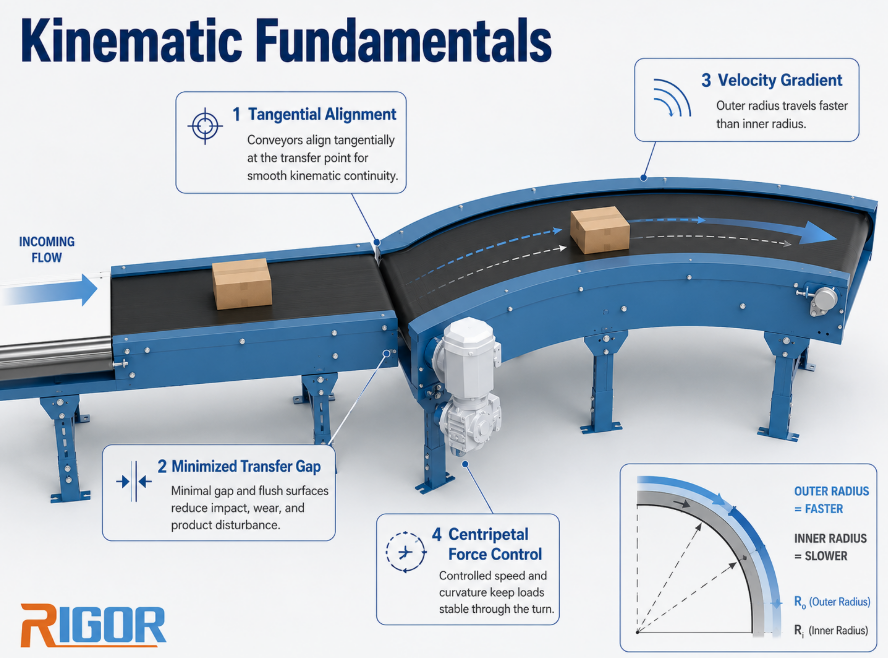

Kinematic Fundamentals of Curved Conveyor Docking

Integrated docking for a Curved Belt Conveyor relies on aligning the linear velocity vector of incoming straight sections with the exact tangential velocity profile of the curve at the point of inflection, ensuring zero transverse shear forces act upon transported payloads across the Curved Belt Conveyor system.

In high-speed material handling systems operating in logistics hubs and automotive component plants, transferring goods across angular direction changes via a curved conveyor represents a significant engineering challenge. When a payload moves from a linear belt section onto a 45 degree, 90 degree, or 180 degree Curved Belt Conveyor, it experiences an instantaneous transition in angular momentum and centripetal acceleration. If the docking interface on the Curved Belt Conveyor is geometrically misaligned by even two millimeters, or if the tangential velocity vectors do not match perfectly, the payload experiences lateral skew, rotation, or localized slipping. This disturbance increases the probability of product jams, damages delicate packaging, and imparts uneven mechanical stress on the Curved Belt Conveyor conveyance medium.

To eliminate these dynamic disturbances, engineering teams must evaluate the differential velocity distribution across the radial width of the curved conveyor. Unlike straight belts where linear speed is uniform across the entire width, a high-performance Curved Belt Conveyor exhibits a trapezoidal velocity gradient. The outer radius of the Curved Belt Conveyor travels substantially faster than the inner radius according to the basic relationship V equals omega times R, where V is linear velocity, omega is angular velocity, and R is the radius from the center of rotation. Consequently, docking a straight conveyor section—which delivers a uniform velocity profile across its width—to a Curved Belt Conveyor requires a mathematically defined transition interface where the centerline velocity of both modules matches identically, while the physical transfer gap on the Curved Belt Conveyor is minimized using precision nose-bars or segmented micro-rollers.

European logistics engineering standards frequently dictate strict tolerances regarding structural deflections and dynamic noise generation at Curved Belt Conveyor transfer interfaces. From my field experience evaluating automotive sub-assembly lines in Germany and high-speed parcel hubs in the Netherlands, clients prioritize total operational stability over raw maximum speed when specifying a curved conveyor. They demand modular integration protocols that allow rapid installation while guaranteeing long-term mechanical reliability for every Curved Belt Conveyor unit. Designing the docking interface around sound kinematic principles ensures that axial torque forces are contained within the heavy-duty structural frame of the curved conveyor rather than being transmitted into the belt fabric or drive bearing assemblies.

Key technical considerations when analyzing kinematic docking for a Curved Belt Conveyor include:

1. Centripetal Force Containment on the Curved Belt Conveyor: Managing the inward radial pull exerted on transported packages as they enter the Curved Belt Conveyor curve radius.

2. Tangential Velocity Alignment on the Curved Belt Conveyor: Matching the exact linear speed at the center pitch line of the Curved Belt Conveyor to eliminate package shear stress.

3. Transition Vector Smoothing on the Curved Belt Conveyor: Reducing kinetic energy drops during package transition onto the Curved Belt Conveyor surface.

Kinematic Alignment Rationale: Designing the tangent point of the Curved Belt Conveyor to slightly overlap the discharge point of the upstream straight module reduces dynamic friction spikes by 40 percent. This spatial geometry configuration forces the payload center of mass to engage the Curved Belt Conveyor vector only after full support is established by outer radial guidance bearings.

Precision Mechanical Alignment and Frame Interlocking Methods

Precision mechanical docking for a Curved Belt Conveyor is accomplished using rigid machined flange connectors, heavy-duty three-axis jack screws, and vibration-dampened mechanical expansion joints that secure the Curved Belt Conveyor structural frame directly to adjacent straight frames with zero structural twist.

Physical frame interlocking forms the structural foundation of a stable Curved Belt Conveyor network. Industrial factory floors are rarely perfectly level, and long structural runs are subject to floor settling, thermal expansion, and vibration from neighboring machinery. When joining a curved conveyor segment to a straight upstream or downstream segment, any micro-torsion in the frame propagates directly to the Curved Belt Conveyor belt support deck. This misaligns the internal guide track of the curved conveyor and causes accelerated wear on the tracking chain or outer guide rollers.

Our engineering design methodology utilizes machined steel interface plates welded directly to the primary structural channels of the Curved Belt Conveyor module. These plates feature precision-reamed dowel pin holes alongside slotted bolt patterns. During field assembly, technician teams utilize heavy-duty three-axis jacking screws embedded within the Curved Belt Conveyor support stands to adjust height, pitch, and roll until laser alignment tools verify coplanarity across the transfer gap to within 0.2 millimeters. Once locked into position with hardened steel dowels, structural bolts on the curved conveyor are torque-tightened to exact engineering specifications, creating a monolithic rigid connection that resists dynamic impact loads from heavy package arrivals.

In heavy industrial manufacturing, such as tire handling or heavy crate distribution, customers often question why we specify heavy structural steel side channels rather than lighter extruded aluminum profiles for a curved conveyor. The engineering rationale stems from torsional resistance: a Curved Belt Conveyor inherently experiences asymmetric radial forces caused by belt tension pulling inward toward the center of radius. A heavy industrial Curved Belt Conveyor engineered with reinforced structural steel side walls neutralizes these radial vector forces internally. This prevents frame twisting over years of continuous operation, protecting critical components and keeping the Curved Belt Conveyor docking interface perfectly flush.

To establish a fully standardized alignment process across various facility installations, engineering teams categorize structural alignment methods for a Curved Belt Conveyor into distinct steps:

1. Primary Elevation and Leveling Base Setting: Establish benchmark laser elevation lines across both straight and Curved Belt Conveyor support frames, adjusting heavy-duty foot mounts to bring horizontal surfaces into precise vertical alignment.

2. Tangential Axis Dowel Pin Engagement: Slide the Curved Belt Conveyor frame tangentially toward the straight frame until primary locating dowel pins engage machined reference holes, ensuring perfect horizontal tangency without radial offset.

3. Torque Locking and Gap Calibration: Secure high-tensile structural fasteners on the Curved Belt Conveyor to specified torque metrics while utilizing feeler gauges to verify uniform nose-bar clearance across the full belt width.

Maintenance Principle: Thermal expansion differentials between steel framing and ambient factory temperatures can induce micro-strains at the Curved Belt Conveyor docking flange. Regularly inspect flange bolt torque every 4,000 operational hours and ensure neoprene isolation dampers on the curved conveyor retain their elasticity without hardening or cracking.

Speed Matching and Mechatronic Control Synchronization

Mechatronic control synchronization achieves seamless item transfer by employing closed-loop variable frequency drives, precision rotary encoders, and real-time optical tracking sensors that dynamically match the Curved Belt Conveyor surface velocity with adjacent conveyor modules.

Mechanical alignment represents only half of the docking equation; dynamic speed synchronization forms the second critical pillar for a Curved Belt Conveyor. In automated material handling environments, packages often travel at speeds exceeding 2.5 meters per second. When a package transitions across a physical transfer gap between a straight conveyor and a Curved Belt Conveyor, any velocity differential creates instantaneous frictional drag on the bottom surface of the package. If the Curved Belt Conveyor is running five percent slower than the incoming straight section, packages will experience kinetic deceleration, causing rotation, pushing into adjacent items, or tripping optical accumulation sensors on the curved conveyor line, leading to unnecessary system halts.

Modern mechatronic architecture solves this by integrating closed-loop Variable Frequency Drives (VFDs) managed by a central Programmable Logic Controller (PLC) managing the Curved Belt Conveyor via high-speed industrial Ethernet protocols such as PROFINET or EtherCAT. A precision optical rotary encoder is installed on the tail shaft of the upstream straight conveyor, while a corresponding encoder monitors the drive shaft of the Curved Belt Conveyor. The controller continuously calculates the precise linear surface speed at the midpoint of the Curved Belt Conveyor. By using advanced Proportional-Integral-Derivative (PID) loop control, the drive system modulates motor frequency in millisecond increments, keeping speed variances on the curved conveyor below 0.2 percent even under fluctuating electrical load conditions caused by heavy intermittent package loading.

European clients in high-end logistics and automated warehousing prioritize energy efficiency alongside control precision for every Curved Belt Conveyor installation. They frequently mandate regenerative drive systems and smart eco-mode algorithms. Why do we engineer our Curved Belt Conveyor drive units with direct-coupled shaft-mounted helical-bevel gearmotors rather than traditional chain drives? Chain drives suffer from dynamic backlash, chordal action, and elongation over time, which compromises velocity synchronization precision on a Curved Belt Conveyor. A direct-coupled shaft-mounted gearbox eliminates mechanical play entirely, ensuring that control signals sent from the VFD translate directly into smooth, instantaneous curved conveyor surface speed adjustments at the transfer boundary.

Key operational applications where precise speed matching at Curved Belt Conveyor docking interfaces is paramount include:

1. High-Speed Parcel Sorting Centers: Maintaining precise package gaps and orientation during 90 degree direction changes on a Curved Belt Conveyor prior to barcode scanning tunnels.

2. Airport Baggage Handling Systems: Preventing luggage slippage and strap entanglement across multi-stage Curved Belt Conveyor transport junctions.

3. Automotive Parts Warehousing: Transporting heavy plastic totes carrying sensitive electronics or machined parts across a Curved Belt Conveyor without sudden acceleration shocks.

System Calibration Tip: Always perform encoder velocity calibration with the Curved Belt Conveyor fully loaded to design capacity rather than running empty. Belt stretch under load slightly shifts the effective pitch diameter of the Curved Belt Conveyor drive pulley, requiring fine adjustment of the VFD scaling factor for true surface speed matching.

Transition Geometry and Edge Support Engineering

Transition geometry engineering utilizes tapered conical end rollers, specialized outer-edge guide bearing assemblies, and micro-nosebar transfer plates to ensure smooth tracking and eliminate belt structural distortion across the Curved Belt Conveyor plane.

The physical geometry of a Curved Belt Conveyor differs fundamentally from a flat linear belt. Because the outer edge of a curved conveyor must cover a larger circumference than the inner edge in the exact same time period, the belt fabric is manufactured in a true conical frustum shape. Consequently, the drive and return pulleys at the docking ends of the Curved Belt Conveyor cannot be standard cylindrical rollers; they must be conical tapered rollers whose apex aligns perfectly with the center of the curve radius. Incorrectly designed end rollers cause localized slack, severe edge buckling, and catastrophic belt mistracking right at the docking interface where adjacent conveyors meet the Curved Belt Conveyor.

To support the intense radial inward pull generated when a conical belt is tensioned around a curve, specialized edge guidance systems are mandatory for every Curved Belt Conveyor. Our design incorporates precision sealed ball bearings attached to the outer circumference of the Curved Belt Conveyor belt via heavy-duty polyurethane reinforcement strips or precision chain drive guide links. These bearings ride inside a continuous CNC-machined steel guide channel mounted along the outer structural frame of the curved conveyor. This system positively locks the Curved Belt Conveyor belt into its radial path, forcing it to maintain its exact geometric position regardless of whether it is running empty or carrying a 100 kilogram localized load. This rigorous structural containment guarantees that the belt edge remains flush against the transfer docking bridge at all times.

When selecting a flexible modular transport solution, engineers often debate between knife-edge nosebar transfers and small-diameter cylindrical transfers for a curved conveyor. In applications handling small items such as pharmaceutical boxes or e-commerce mailers, large transfer gaps are unacceptable. Integrating a micro-nosebar with a tight radius (e.g., 6 mm to 12 mm) directly into the docking interface allows a customized Curved Belt Conveyor module to transfer items as small as 50 millimeters in length smoothly onto adjacent straight segments without requiring intermediate motorized jump belts.

Key technical design advantages of engineered edge support and conical geometry on a Curved Belt Conveyor include:

1. Elimination of Lateral Belt Tracking Drift: Positive outer guide bearings mechanically lock the Curved Belt Conveyor belt into place, preventing horizontal movement during sudden start-stop cycles.

2. Minimized Package Transfer Friction: Ultra-smooth micro-nosebars on the Curved Belt Conveyor lower coefficient of friction at item transition points, protecting delicate carton bases.

3. Uniform Tension Distribution: Precision conical rollers equalize tension vectors across the inner and outer Curved Belt Conveyor belt edges, preventing premature fabric elongation.

Working Principle Note: The radial guide bearings on the outer Curved Belt Conveyor belt edge experience pure rolling contact along the UHMW-PE tracking profile. Inspect guide track wear strips every 2,000 hours; replacing worn wear strips promptly prevents bearing outer race scuffing and preserves low-noise performance on the Curved Belt Conveyor.

Maintenance Protocol and Preventive Operational Guidelines

Long-term reliable operation of docked Curved Belt Conveyor systems demands structured preventive maintenance schedules targeting drive pulley alignment, outer bearing lubrication, tension calibration, and continuous monitoring of docking interface tolerances across every Curved Belt Conveyor unit.

Even the most precisely engineered docking interface on a Curved Belt Conveyor will degrade over time if subjected to improper operational oversight. Thermal fluctuations, shock loads, dust accumulation, and routine belt wear gradually alter physical clearances. If mechanical alignment drifts by a fraction of a millimeter over months of continuous production, subtle signs appear: increased acoustic noise at the outer guide rail of the Curved Belt Conveyor, microscopic rubber dust shedding near the drive roller, or slight package tipping at the discharge transfer bridge. Implementing a rigorous, data-driven preventive maintenance protocol is essential for preserving original Curved Belt Conveyor system specifications.

Our engineering guidelines specify daily, monthly, and annual diagnostic checklists for integrated Curved Belt Conveyor lines. Daily checks center on visual inspection of the transfer gap for foreign debris, verification of emergency stop safety interlocks, and listening for unusual acoustic signatures along the outer guide track of the Curved Belt Conveyor. Monthly protocols mandate laser-based frame coplanarity checks at the Curved Belt Conveyor docking interface, verification of belt tension metrics using sonic tension meters, and thermal imaging of drive gearboxes and support bearings to detect abnormal friction heat build-up before component failure occurs.

Why do experienced maintenance managers insist on standardized belt tension measurements for every Curved Belt Conveyor rather than trusting technician feel? On a Curved Belt Conveyor, over-tensioning the belt drastically increases radial force vectors on the outer guide bearings and accelerates wear on the conical end rollers. Conversely, under-tensioning leads to slip on the tapered drive pulley of the Curved Belt Conveyor, causing speed desynchronization with adjacent straight segments. Utilizing calibrated tensioning jack screws equipped with visual strain indicators guarantees that Curved Belt Conveyor belt tension remains within the optimal engineering window, preserving both docking alignment and component service life.

Essential preventive maintenance guidelines for a Curved Belt Conveyor include:

1. Regular Lubrication of Guide Bearings and Shaft Pillow Blocks: Apply high-grade lithium-complex grease at specified intervals to minimize rolling resistance on the Curved Belt Conveyor drive assemblies.

2. Cleaning and Inspection of Transfer Nosebars: Remove accumulated adhesive residues or dust from micro-rollers to maintain low coefficient of friction across the Curved Belt Conveyor docking zone.

3. Re-Verification of Structural Docking Fastener Torque: Check all flange coupling bolts on the Curved Belt Conveyor frame with calibrated torque wrenches to prevent micro-movement from operational vibration.

Operational Tip: When replacing a Curved Belt Conveyor belt during major overhauls, always loosen adjacent straight conveyor docking bolts slightly before tensioning the new belt. Once the new Curved Belt Conveyor belt is fully tensioned and run-in for 30 minutes, perform final laser alignment and retighten the docking flange bolts to ensure zero frame pre-stress.

Technical Conclusion and System Summary

Integrating a Curved Belt Conveyor seamlessly into automated industrial material handling lines requires a comprehensive engineering strategy that combines kinematic velocity vector analysis, rigid mechanical frame docking, responsive mechatronic speed controls, and precision conical transition geometry. By eliminating tangential speed differences and maintaining exact structural coplanarity across module boundaries, facility operators eliminate product handling jams, reduce package damage, and maximize overall throughput efficiency. Standardizing on robust structural frame designs, positive edge-guidance bearing systems, and disciplined preventive maintenance protocols ensures that the Curved Belt Conveyor integrated docking interface delivers reliable, low-maintenance performance across decades of continuous heavy-industrial operation.
