A curved belt conveyor operates by utilizing a conical roller geometry, positive edge guidance mechanisms, and reinforced flexible belts to transfer materials smoothly across angular turns from 30 to 180 degrees without product disorientation or tracking loss. By matching the inner and outer linear velocities through tapered pulley diameters, the curved belt conveyor maintains uniform belt tension, precise centrifugal stability, and seamless mechanical speed transitions across complex material handling routes.
Section | Summary |
The Core Mechanism Behind Curved Conveyors | Explains the fundamental mechanical engineering principles, tapered roller geometry, differential belt speed calculations, and radial forces governing curved belt conveyor movement. |
Belt Material and Construction Adaptations | Analyzes structural belt tensile strength, ply construction, high-friction synthetic polymers, and lateral flexibility requirements needed for continuous curved belt conveyor routing. |
Drive Systems and Power Transmission | Evaluates drive configuration methodologies, comparing center drive versus tangential drive architectures alongside Variable Frequency Drive speed regulation for curved belt conveyor installations. |
Product Stability and Tracking Control | Examines kinematic forces during angular acceleration, centrifugal force mitigation techniques, guide bead tracking systems, and active tracking sensors on a curved belt conveyor. |
Common Curved Conveyor Configurations | Details structural layouts including 45 degree, 90 degree, and 180 degree turn geometries, spiral incline paths, and modular integrations using a curved belt conveyor. |
Maintenance Considerations and Wear Patterns | Outlines technical maintenance schedules, differential roller wear analysis, edge chain lubrication, and wear monitoring routines for long term curved belt conveyor reliability. |

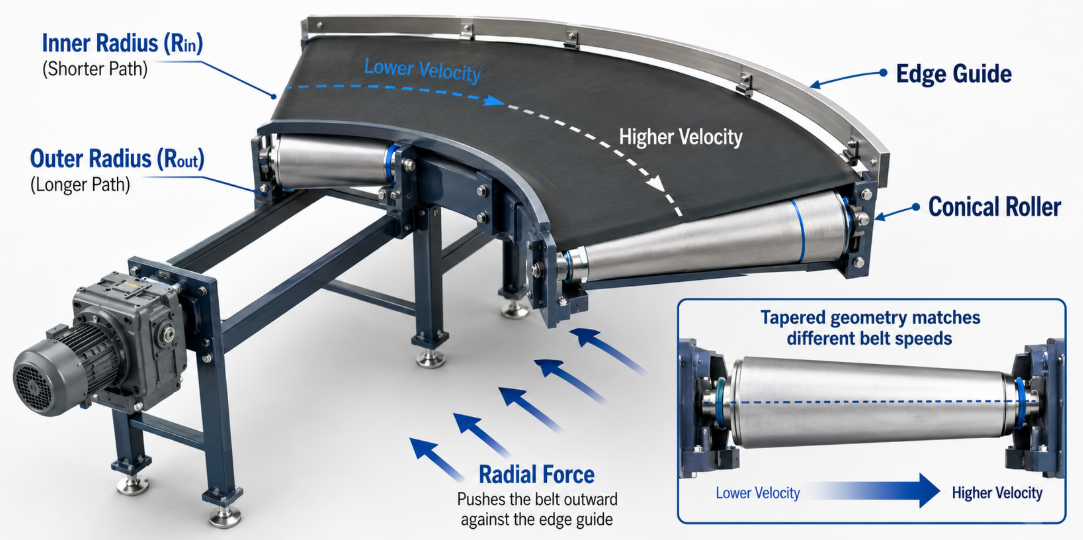

The core mechanism behind a curved belt conveyor relies on conical pulley geometry, tapered drive rollers, and radial tension forces to maintain uniform belt movement along an arc without lateral drifting.
In conventional straight belt conveying, all points across the width of the belt travel at identical linear velocities because drive rollers maintain a uniform cylindrical profile along their longitudinal axes. However, when a belt system transitions through a curved trajectory, the outer edge of the belt must travel a significantly longer arc distance than the inner edge in the exact same timeframe. To achieve continuous operational stability without severe belt buckling, structural tearing, or lateral tracking collapse, an engineered curved belt conveyor system utilizes tapered end pulleys and conical support rollers. The diameter of these tapered components increases proportionally from the inner turn radius to the outer turn radius, establishing a mechanical velocity gradient that perfectly matches the required arc distance differential across the entire belt face.
Mathematically, the required rotational tangential velocity along any radial cross section of a curved belt conveyor is directly proportional to its radius from the center of curvature. If the inner radius is denoted as Rin and the outer radius as Rout, the linear velocity ratio Vout / Vin equals Rout / Rin. By precisely engineering conical drive rollers with a matching taper angle theta, where tan(theta) equals (Dout - Din) / (2 * W) (with D representing roller diameters and W representing total belt width), the roller surface matches the exact linear movement of every circumferential line along the flexible belt ply. This conical geometry eliminates differential scrubbing friction between the belt backing and roller surfaces, ensuring energy efficient mechanical power transmission and preventing premature elastomer degradation.
In addition to conical roller geometry, radial vector forces play a dominant physical role in curved belt conveyor operation. Because the elastic belt is drawn under substantial axial tension around a curve, it generates a natural inward radial force vector component directed toward the center of curvature. Left uncompensated, this vector would cause the belt to pull inward toward the inner radius, collapsing the system. To counteract this force, high performance curved belt conveyor structures employ external edge guidance systems, such as chain guided edge attachments, guide wheels, or precision machined guide beads running along continuous outer guide tracks. These mechanical restraining systems absorb the inward radial tension forces, maintaining the structural shape, taut surface profile, and positional integrity of the curved belt conveyor across all operational load states.
Mechanical Parameter | Inner Radius Mechanics | Outer Radius Mechanics | System Integration Impact |
Linear Velocity (m/s) | Lower velocity (proportional to Rin) | Higher velocity (proportional to Rout) | Requires tapered conical rollers to match velocity gradients. |
Pulley Diameter (mm) | Smaller conical diameter | Larger conical diameter | Eliminates surface sliding friction and belt ply shear stress. |
Radial Vector Forces | Concentrated inward radial tension pull | Outward reaction via edge guides | Demands continuous edge tracking tracks or guide wheel assemblies. |
Belt Ply Extension (%) | Minimal tension strain load | Maximum longitudinal stretch strain | Requires elastomeric or multi ply woven carcass flexibility. |
Belt material and construction adaptations for a curved belt conveyor focus on providing high lateral flexibility combined with high longitudinal tensile strength to endure asymmetrical vector loads.
Standard flat belt conveyors utilize rigid multi ply fabric carcasses designed primarily for longitudinal tensile strength, offering minimal lateral elasticity. In sharp contrast, a curved belt conveyor requires specialized synthetic belting materials capable of enduring continuous elastic deformation across different radial zones. The outer edge of a curved belt conveyor experiences significant longitudinal elongation strain due to its larger arc radius, while the inner edge undergoes relative compression. Consequently, belting fabrics are constructed from specialized weave patterns, such as monofilament polyester warp and flexible polyamide weft yarns, or vulcanized polyurethane (PU) and polyvinyl chloride (PVC) elastomeric compounds engineered specifically for multi directional stress absorption.
To safely transfer drive torque while resisting intense radial inward pulling forces, the structural edge construction of a curved belt conveyor belt is highly specialized. The outer perimeter of the belting material often incorporates reinforced edge strips, sealed flexible grommets, or specialized tracking profiles welded directly to the underside or edge margin. In heavy duty industrial applications, outer edge chain profiles are attached directly to the belt using flexible polyurethane tabs or metallic fasteners, transforming tension distribution from pure surface friction to positive mechanical drive engagement. For high speed light duty conveying, precision sealed ball bearings running along an extruded aluminum outer track capture continuous guide beads molded to the belt perimeter. Comprehensive design specifications and structural parameters can be evaluated in the detailed curved conveyor technical guide.
Top cover surface compounds are carefully formulated depending on the physical characteristics of the conveyed product and environmental factors. Polyurethane covers with high coefficients of friction (0.4 to 0.7 against smooth steel or carton bottoms) are standard when conveying smooth boxes, packaged foods, or fragile components along steep curved incline angles to prevent slip induced by centrifugal acceleration. Conversely, low friction top covers utilizing impregnated silicone or PTFE blended fabrics are used where accumulate and merge operations occur upon the curved belt conveyor surface. Fire retardant anti static properties compliant with ISO 284 standards are also regularly integrated into airport baggage handling and warehouse logistics belting to eliminate electrostatic discharge hazards during high velocity material handling.
Belting Composite Type | Tensile Strength (N/mm) | Surface Friction Coefficient | Primary Application Sector |
Monofilament PU Fabric | 12 to 25 N/mm | 0.45 (High Friction) | Light packaging, food processing, order sorting lines. |
Multi Ply PVC Industrial | 20 to 50 N/mm | 0.35 (Medium Friction) | Parcel handling, logistics hubs, postal distribution. |
Chain Driven Reinforced Synthetic | 80 to 180 N/mm | 0.55 (Heavy Duty Surface) | Airport baggage handling, heavy bulk material transport. |
Modular Plastic Flex Curve | 35 to 90 N/mm | 0.20 to 0.30 (Low Friction) | Container lines, beverage bottling, pharmaceutical plants. |
Drive systems and power transmission in a curved belt conveyor are designed to deliver consistent torque while compensating for differential velocity across the belt face.
Power transmission in a curved belt conveyor can utilize either a center drive beneath the frame for bidirectional flexibility or a tangential end drive on the outer pulley to maximize efficiency and reduce belt strain. Integrating Variable Frequency Drives (VFDs) ensures controlled acceleration, mitigates torque spikes, and syncs conveyor speed with adjacent equipment to protect delicate payloads.
Drive Configuration | Mechanical Efficiency | Reversibility | Maintenance Complexity | Ideal Operating Environment |
Center Drive Assembly | 78% to 85% | Fully Reversible | Higher (Multiple pulleys) | Bidirectional distribution lines, space constrained cells. |
Tangential End Drive | 88% to 94% | Single Direction | Lower (Direct pulley access) | High speed parcel sorting, airport baggage handling. |
VFD Controlled Direct Drive | 92% to 96% | Programmable | Minimal (Few mechanical joints) | Precision manufacturing, sensitive item transport. |
Engineering Tip for Drive Optimization: When configuring drive units for curved belt conveyor installations operating above 2.0 m/s, always calculate required motor power using the maximum dynamic friction coefficient at the outer edge guide track rather than nominal belt on bed friction alone. Radial load drag on guide bearings can contribute up to 35% of total system drive resistance under full product payload conditions.
Product stability and tracking control on a curved belt conveyor are achieved by managing centrifugal inertia while maintaining mechanical belt edge alignment through continuous tracking systems.
Centrifugal force on turning items can be mitigated using high-friction top covers, wider turn radii, or banked frame designs to prevent product displacement. To ensure precise operational alignment, integrated tracking sensors continuously monitor belt placement and signal automated controllers to correct drift before mechanical damage occurs.
Tracking Technology | Detection Mechanism | Response Mode | Primary Risk Mitigation |
Mechanical Limit Switches | Physical edge lever contact | Emergency hard stop trigger | Prevents catastrophic belt frame jam. |
Infrared Photo Eye Array | Optical beam interruption | PLC warning and auto adjustment | Monitors gradual edge drift and wear. |
Laser Distance Profilers | Non contact distance measurement | Closed loop dynamic actuator control | Provides continuous high precision positioning. |
Inductive Proximity Probes | Metal metallic tab sensing | Chain speed and alignment feedback | Monitors chain driven curve belt systems. |
Common curved conveyor configurations include 45 degree, 90 degree, and 180 degree horizontal turns, as well as vertical spiral incline and decline geometries tailored to facility layouts.
Industrial facility layouts present diverse spatial constraints and routing requirements, demanding adaptable curved belt conveyor geometry options. The structural engineering of a curve is defined by three primary geometric metrics: the turn angle theta (expressed in degrees), the inner radius Rin (measured from the center point of curvature to the inside belt edge), and the effective usable belt width W. By modifying these three geometric metrics, a curved belt conveyor can be seamlessly integrated into virtually any material handling flow, routing around structural building columns, bridging elevation gaps, or executing complete u turn directional flips.
The standard horizontal turn geometries include:
45 Degree Curved Conveyor: Designed primarily for gentle directional offsets, line merges, and bypassing localized factory obstacles. This configuration generates minimal centrifugal acceleration, making it ideal for high speed routing where product orientation must be preserved with minimal edge guide stress.
90 Degree Curved Conveyor: The most widely utilized configuration in warehouse logistics, packaging halls, and distribution centers. It allows material transport lines to execute right angle direction changes along facility walls or between processing workcells without requiring power operated pop up transfer units or cross conveyor pushers.
180 Degree Curved Conveyor: Frequently designated as a u turn conveyor, this configuration completely reverses material flow direction within a compact footprint. It is widely deployed in cooling tunnels, multi pass thermal drying circuits, manufacturing loop cells, and baggage loop recirculation lines where spatial efficiency is critical.
Spiral Incline Decline Curved Conveyor: Combines horizontal arc curvature with continuous vertical pitch elevation changes. By winding the curved belt conveyor into a helical spiral pattern, high elevation vertical transport is achieved within an exceptionally small floor footprint, replacing long inline incline conveyors.
Configuration Type | Standard Angle Range | Typical Inner Radius | Primary Operational Benefit |
45 Degree Horizontal Curve | 30 to 60 degrees | 500 mm to 1500 mm | Minimal speed loss, smooth gentle directional change. |
90 Degree Right Angle Curve | 90 degrees exact | 600 mm to 2000 mm | Standard corner routing, seamless line transitions. |
180 Degree U Turn Curve | 180 degrees exact | 800 mm to 2500 mm | Maximum spatial compact efficiency, flow reversal. |
Helical Spiral Curve | 360 to 1440 degrees plus | 1000 mm to 3000 mm | Vertical elevation change within a compact footprint. |
Maintenance considerations and wear patterns on a curved belt conveyor stem from asymmetrical vector forces, requiring specialized roller inspection, edge chain lubrication, and belt wear tracking protocols.
Differential wear naturally occurs on tapered rollers due to higher speed and load on the outer diameter, requiring routine caliper measurements and lagging maintenance. Outer belt edges demand continuous monitoring for tears or grommet damage, while regular lubrication of guide chains, bearings, and slider beds is essential to prevent frictional wear and ensure reliable system operation. Reviewing comprehensive operational guidelines in the curved conveyor operational manual provides essential baseline procedures for technical service teams.
Maintenance Target | Inspection Frequency | Primary Wear Indicator | Corrective Maintenance Action |
Tapered Drive Rollers | Every 1000 Operating Hours | Outer diameter wear and surface scoring | Re lag roller face or replace worn conical drum. |
Outer Edge Guide Chain / Bead | Every 250 Operating Hours | Chain pitch elongation and grommet looseness | Adjust chain tension, replace damaged edge pins. |
Radial Guide Bearings | Every 500 Operating Hours | Rotational play, noise, elevated temperature | Replace sealed precision bearings immediately. |
UHMW-PE Slider Bed | Every 2000 Operating Hours | Deep longitudinal grooving and bed wear | Resurface or replace UHMW slider wear strips. |
Maintenance Tip for Long-Term Reliability: Never attempt to correct belt misalignment on a curved belt conveyor by over tightening the inner take up tension bolts alone. Increasing tension on the inner radius increases the inward radial force vector, accelerating outer guide track wear and causing severe belt edge distortion. Always balance tension adjustments across both inner and outer take up frames according to manufacturer torque specifications.
The operational success of a curved belt conveyor relies on a harmonious integration of conical mechanics, specialized material science, and precise radial tracking control. By employing tapered drive rollers that establish matching linear speed gradients across inner and outer radii, these advanced systems eliminate differential surface friction, enabling smooth material transport through complex angular paths. From robust drive configurations and advanced VFD speed synchronization to active belt tracking sensors and protective maintenance protocols, every engineering aspect of a modern curved belt conveyor is optimized for operational efficiency, low noise, and maximum service life. As automated material handling demands continue to expand in throughput and spatial complexity, mastering the structural mechanics and design principles of curved belt conveyances remains essential for optimizing global industrial routing architectures.
