How Curved Conveyor Belts Work & Save Space in Facilities

Curved conveyor belts change the direction of material flow within a logistics or production line across angles ranging from 30 to 180 degrees without requiring manual transfer or right-angle product reorientation. By maintaining continuous belt alignment, precise drive torque distribution, and consistent material orientation through gentle turn radii, a curved belt conveyor eliminates awkward transfer dead zones, preserves floor space, and optimizes high-throughput facility operations.

Table of Contents

• Mechanical Fundamentals & Drive Mechanisms

• Spatial Optimization & Layout Efficiency

• Load Dynamics & Orientation Integrity

• Key Components & Structural Specifications

• Maintenance & Operating Protocols

• Strategic Facility Applications

Mechanical Fundamentals & Drive Mechanisms

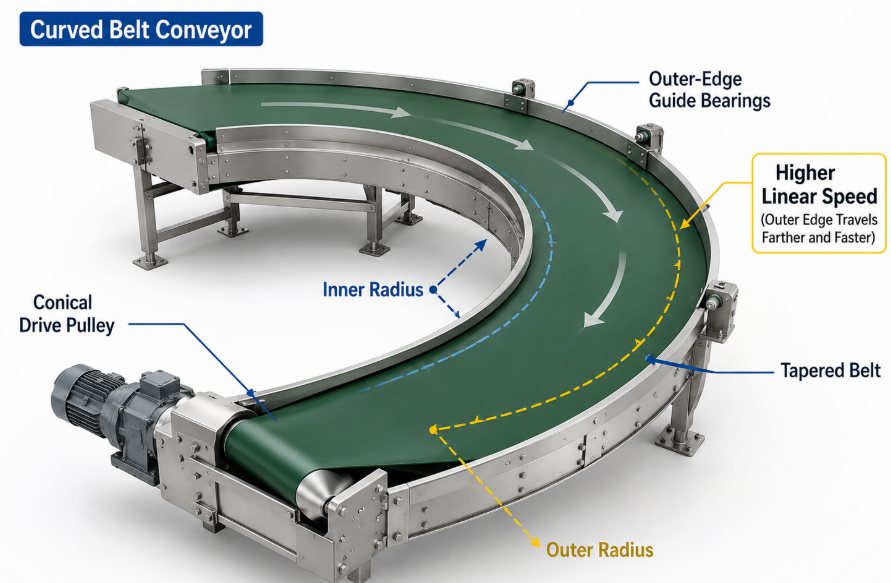

A curved belt conveyor operates by utilizing specialized conical end rollers, outer-edge drive chains or guide bearings, and custom-shaped tapered belts to transfer mechanical torque evenly across a curved path while mitigating lateral belt migration.

The foundational physical challenge of driving a belt around a curve is the differential speed requirement across the inner and outer radii. The outer circumference of a curve is significantly longer than the inner circumference. To maintain a smooth, uniform belt surface without buckling or slipping, the linear speed at the outer edge of the belt must be higher than the speed at the inner edge. Standard cylindrical rollers cannot achieve this velocity gradient because their outer diameter is constant along their length, which would cause the belt to slip, stretch unevenly, or bunch up along the inner turn.

To resolve this kinematic discrepancy, modern engineering employs conical or tapered end rollers. Because the diameter of a conical roller increases gradually from the inner radius to the outer radius, the tangential surface velocity scales proportionally across the roller face. This design matches the exact geometric requirements of the curved belt path, ensuring that every point across the belt width moves at its matching spatial speed. In heavy-duty or high-speed systems, positive drive mechanisms—such as outer-edge chain drives, specialized timing belts, or precision sealed bearings running along a peripheral guide rail—are combined with conical drive pulleys to counteract radial forces. As tension is applied, radial force inherently pulls the belt toward the center of curvature; the outer guide mechanism physically restrains the belt, ensuring stable tracking under heavy loads.

In specialized industrial applications, radial tension distribution determines operational longevity and system stability. Why is a curved belt conveyor designed with outer-edge guide bearings rather than relying solely on belt tension? In high-speed sorting facilities, central tension alone leads to excessive edge wear and belt distortion over time. Engineering a rigid frame with precision guide rollers along the outer arc safely absorbs the inward radial force vectors generated during acceleration and continuous motion. European logistics hubs, which prioritize low noise levels and minimal maintenance downtime, frequently select sealed precision bearing guides paired with high-tensile synthetic belts for quiet, maintenance-free execution across 90-degree and 180-degree turns.

Spatial Optimization & Layout Efficiency

Integrating a curved belt conveyor into a facility layout saves up to 40% of usable floor space by eliminating awkward straight-line right-angle turnarounds and utilizing tight-radius directional changes.

In conventional material handling setups without curved belt conveyors, changing the direction of travel usually requires running two straight conveyors at a 90-degree angle to one another, separated by a transfer table, pop-up wheel diverter, or turntable. These mechanical transfer points demand substantial linear footprint, create dangerous pinch points, and require additional clearance around the perimeter for motor drives and control panels. Furthermore, right-angle transfers force products to stop, shift, or pivot, which creates wide gaps between items and demands extra safety buffer distances along the conveyor line.

By contrast, continuous curved belt conveyors negotiate smooth turns from 30, 45, 60, 90, to 180 degrees within a compact, predictable curve radius. Facilities can route product lines around structural building columns, navigate tight building corners, and connect mezzanine levels without sacrificing floor space. By bending the production path tightly around existing architectural features, facility managers can reclaim valuable floor space for manufacturing equipment, assembly workbenches, or pallet storage racks.

From an operational layout perspective, why do engineering teams prefer continuous curved routing over modular pop-up transfers? Modern automated warehouses operate on strict throughput density metrics. When space is constrained, every square meter dedicated to dead zone transfers reduces storage capacity or assembly space. Implementing a compact curved belt conveyor allows facilities to maximize line length within tight architectural boundaries while maintaining uninterrupted linear product speeds. European distribution centers, facing high commercial real estate costs, consistently prioritize tight inner-radius curved conveyors to maximize cubic space utilization across multi-level mezzanine systems.

Load Dynamics & Orientation Integrity

A curved belt conveyor preserves item orientation and stability during directional changes by eliminating impact forces and slide points associated with mechanical transfer units.

When conveyed items encounter traditional transfer mechanisms like pop-up wheels, cross-belt pushers, or gravity dead plates, they undergo abrupt multidirectional force shifts. These sudden forces cause lightweight cartons to slip, fragile packages to tilt, and high-center-of-gravity items to tumble. Additionally, items often rotate out of their original scan orientation during right-angle transfers, rendering downstream barcode scanners or automated labeling systems ineffective and requiring manual operator intervention to re-align packages.

A curved belt conveyor provides a continuous, high-friction carrying surface that supports the package throughout its entire journey around the turn. Because the item remains stationary relative to the belt surface, centrifugal forces are quietly absorbed by static friction between the belt top cover and the product base. This smooth transition preserves package orientation perfectly from entry to exit. Barcode labels remain facing the correct camera angles, delicate goods are protected from impact shock, and light materials are prevented from shifting off the conveyor edge.

Why do system integrators demand absolute package orientation preservation in modern logistics? In automated sorting hubs, misaligned packages trigger scan failures and system re-circulations, directly reducing hourly unit capacity. Real-world client data indicates that package orientation maintenance is the single most critical performance metric for e-commerce sorting facilities. To meet these rigorous demands, curved belt conveyors utilize custom high-friction belt surfaces and precise speed control integration, ensuring that even un-packaged or irregular items navigate sharp turns at high line speeds without displacement.

Key Components & Structural Specifications

Industrial curved belt conveyors are built with specialized structural components designed to handle multi-axial mechanical stresses, including radial pull, belt tension, and high operational velocities.

Building a reliable curved belt conveyor requires precision-machined components that withstand uneven vector loads. Standard conveyor frames endure simple longitudinal tension, whereas curved conveyor frames must absorb continuous lateral forces that pull the belt inward toward the arc's center. Frame profiles are typically laser-cut from high-strength carbon steel, stainless steel, or extruded aluminum profiles to prevent structural flex under full payload conditions.

The conical pulleys form the core mechanical interface. Machined to exacting taper angles matching the inner and outer turn radii, these pulleys ensure synchronized line speeds across the entire belt width. Support beds underneath the belt utilize ultra-high-molecular-weight (UHMW) polyethylene slider sheets or arrays of precision ball-bearing rollers to reduce frictional heat and power consumption.

For a comprehensive technical overview of structural variations and selection criteria across specialized conveying configurations, review our detailed guide on curved conveyors.

Maintenance & Operating Protocols

Routine maintenance of a curved belt conveyor focuses on monitoring outer-edge guide bearings, inspecting belt tension settings, checking conical pulley alignment, and ensuring slider bed cleanliness.

Because curved belt conveyors experience radial vector forces during continuous operation, maintenance routines differ slightly from standard straight conveyors. The outer edge guide mechanism—whether constructed of precision bearings, chain guides, or tracking beads—absorbs substantial dynamic force. If tracking guides become misaligned or worn, belt tension becomes unbalanced, leading to premature edge wear, elevated motor noise, or frame contact.

Daily visual inspections should confirm that the belt is tracking smoothly along its designated arc without riding up against edge guide stops. Weekly maintenance protocols require cleaning debris from the slider bed surface, as accumulated dust or foreign objects increase friction and heat build-up under the belt. Monthly checks should focus on verifying motor drive alignment, checking gearbox oil levels, and measuring bearing wear using ultrasonic vibration diagnostics or manual play checks.

System Maintenance Tip: Always measure belt tension using specialized tension meters at three points across the belt width (inner arc, center, and outer arc) during preventative maintenance. Uneven tension across a curved belt conveyor causes localized belt stretching, accelerates tracking guide wear, and leads to belt slippage on the conical drive pulley.

Strategic Facility Applications

Curved belt conveyors are critical components in high-throughput sectors including airport baggage handling, e-commerce fulfillment hubs, automated food processing plants, and packaging operations.

In airport baggage handling systems (BHS), reliability is paramount. Luggage items vary dramatically in weight, shape, and material, ranging from soft fabric duffel bags to hard-shell suitcases. A curved belt conveyor seamlessly transports luggage through security screening checkpoints, sharp terminal turns, and baggage sorting carousels without luggage getting caught, turning over, or causing system jams. The continuous smooth surface prevents loose straps from snagging, protecting baggage and machinery alike.

In e-commerce fulfillment centers, where thousands of small parcels, polybags, and corrugated boxes pass through per hour, maintaining continuous high speeds is essential. Straight-line transfers with pop-up wheels struggle to process lightweight polybags, which often buckle or catch in transfer gaps. Implementing an integrated curved belt conveyor allows e-commerce facilities to maintain line speeds exceeding 2.5 meters per second around tight 90-degree turns, maintaining item spacing for automated sorting equipment.

Food processing and packaging lines also leverage specialized curved conveyors constructed with food-grade PU belts and stainless-steel frames. In bakery operations, delicate items such as unbaked pastries, biscuits, or chocolates must transition between ovens, cooling tunnels, and packaging machines without altering product pitch or causing physical damage. The gentle turning motion of a curved belt conveyor preserves product integrity while maximizing thermal cooling tunnel lengths within compact facility spaces.

Why do international facility designers insist on custom-engineered curved belt conveyors for modern automated plants? Standard off-the-shelf conveyor solutions often force awkward floor layouts with unnecessary straight runs. Custom-engineered curved conveyors fit precisely into existing facility blueprints, eliminating bottlenecks, optimizing transport efficiency, and driving long-term operational profitability across global supply chains.

Conclusion

Understanding how a curved belt conveyor works reveals why it is an essential investment for modern material handling facilities. By solving the kinematic challenge of differential inner and outer velocities through precision tapered conical rollers and guided outer edge tracking mechanisms, curved belt conveyors deliver smooth, continuous directional changes. Incorporating these systems eliminates dangerous transfer dead zones, prevents item misalignment, preserves fragile package integrity, and saves up to 40% of facility floor space. Whether operating in high-speed e-commerce sorting hubs, airport baggage terminals, or food processing plants, curved belt conveyors optimize workflow, increase hourly throughput, and provide a reliable foundation for automated logistics infrastructure.
