Curved conveyor belts and modular curved systems work by utilizing tapered rollers, specialized conical geometry, and radial retention mechanisms to maintain a uniform linear speed across the entire width of the curve, preventing product misalignment and slipping. By driving the outer radius at a proportionally faster rate than the inner radius, these systems ensure that materials negotiate bends smoothly while preserving their precise orientation.
This comprehensive technical guide will detail the exact mechanics, structural engineering, and strategic selection criteria that define industrial curved material handling solutions. From core kinematic principles to specific B2B applications, we will explore how these systems eliminate production bottlenecks and drive facility ROI. The following sections provide a complete breakdown of the technology, maintenance best practices, and integration strategies required for modern industrial operations.
Section | Summary |
Core Working Principles of Curved Material Handling Systems | Explains the fundamental kinematics, tapered roller mechanics, and radial velocity management required to move goods around a bend without slippage. |
Key Structural Components of a Curved Roller Conveyor | Breaks down the essential physical hardware, including tapered steel rollers, precision bearings, heavy-duty frames, and specialized drive chains. |
Main Types of Curved Conveyors and Their Industrial Applications | Compares different curved conveyor designs, such as standard belt, modular plastic, and roller-driven varieties, highlighting their sector-specific uses. |
Critical Selection Criteria for B2B Procurement and Engineering | Outlines the vital engineering parameters, weight capacities, radius calculations, and environmental factors buyers must evaluate before purchasing. |
Installation, Maintenance, and Troubleshooting Best Practices | Provides a practical, step-by-step operational guide on aligning curves, tracking belts, maintaining tension, and preventing common wear patterns. |
Curved material handling systems function by executing a precise differential speed gradient across the transport surface, utilizing tapered components to ensure the outer edge moves faster than the inner edge. This precise calibration counteracts centrifugal forces and prevents package orientation drift.
To understand the mechanics, one must look at the basic physics of rotational kinematics. When an object moves along a curved path, the distance traveled by the outer edge is significantly greater than the distance traveled by the inner edge over the same time increment. If a conveyor utilized standard cylindrical rollers throughout a ninety degree bend, every point along the roller would attempt to rotate at the same surface linear speed. This would inevitably cause products on the outer radius to lag behind, leading to severe twisting, material scuffing, and frequent system jams.
To solve this physical challenge, engineering designs integrate specialized tapered rollers. A true Curved Roller Conveyor relies on these conical rollers, where the diameter of the roller gradually increases from the inner radius to the outer radius. Because the outer diameter is larger, its surface linear speed is proportionally higher for any given rotational RPM. This exact geometric proportion ensures that all points across the width of the line complete the turn in perfect synchronization.
Furthermore, radial retention mechanisms are employed to combat the natural tendency of the moving surface or the product to slide outward due to inertia. In belt-driven variants, a series of guide rollers, tracking profiles, or heavy-duty chain attachments run along the high-radius frame perimeter. These tracking components lock the flexible medium into its structural track, absorbing the lateral forces generated by heavy payloads as they transition through forty-five degree, ninety degree, or one hundred and eighty degree directional changes.

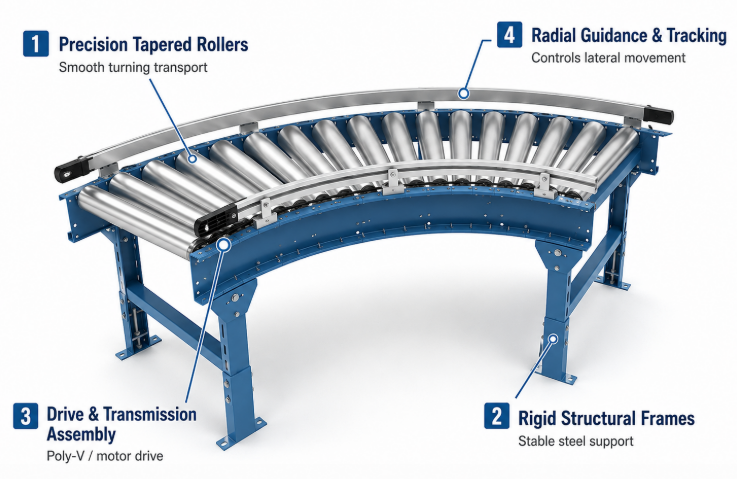

The structural integrity and operational efficiency of a heavy-duty Curved Roller Conveyor depend on a network of engineered components, including precision tapered rollers, rigid radius framing, and specialized drive configurations. Each part must be machined to precise tolerances to withstand continuous lateral and axial loading stresses.
The tapered rollers are the primary contact point for material transport. Machined from high-grade carbon steel, stainless steel, or impact-resistant polymers, their exact angle of taper must match the true center point of the turn radius. These rollers are fitted with precision-ground ball bearings that can handle both the radial loads of the product weight and the axial thrust loads generated by the turning motion.
The outer and inner side frames form the structural backbone of the curved assembly. Typically constructed from CNC-laser-cut structural steel or heavy-gauge extruded aluminum, these frames must resist twisting forces. The inner frame is shorter and tightly radiused, while the outer frame incorporates mounting brackets for the drive mechanism and safety guardrails.
Powering a curved system requires specialized drive arrangements. Standard options include heavy-duty precision roller chains running in custom UHMW polymer wear strips, or high-torque line shafts connected via flexible O-rings. For high-capacity industrial demands, choosing a premium Curved Roller Conveyor equipped with direct-drive motorized rollers ensures optimal torque transmission without mechanical loss.
To prevent the conveyor belt or chain medium from shifting laterally under load, robust radial guidance systems are installed. This involves heavy-duty guide bearings mounted vertically along the outer edge of the belt, which roll against a machined steel lip. In modular plastic chain curves, molded tabs on the underside of the chain links lock directly into matching tracks in the conveyor bed.
Industrial facilities utilize several distinct types of curved material handling systems, categorized by their transport medium—including true belt curves, modular plastic chains, and live roller systems—to match specific production environments. Selecting the correct type depends directly on the weight, geometry, and surface characteristics of the material being moved.
System Class | Core Technology | Primary Mechanics | Target Environment |
Fabric Belt Curves | Continuous sheet of reinforced PVC or polyurethane cut into a precise arc shape. | Runs along structural guide tracks to handle high-speed sorting. | Best for small items, fragile electronics, or irregular airport baggage. |
Modular Plastic Chains | Interlocking plastic segments arranged in a heavy-duty brick-lay pattern. | Molded tabs lock directly into matching tracks beneath the conveyor bed. | Ideal for wet environments, beverage bottling, and food washdown zones. |
Live Roller Curves | Individually driven tapered rollers powered by chains, poly-V belts, or line shafts. | Supports zero-pressure accumulation to control line flow automatically. | Perfect for heavy cartons, tote boxes, and heavy industrial pallets. |
Fabric belt curves use a continuous sheet of reinforced synthetic material cut into an arc shape. These systems provide a highly stable, smooth surface ideal for transporting small items, fragile electronics, or irregular baggage. Because the entire surface moves uniformly, it prevents small parts from falling through gaps, making them popular in airport baggage handling and e-commerce sorting hubs.
Constructed from interlocking plastic segments, modular curves offer excellent mechanical durability and fluid drainage. The brick-lay pattern of the modules provides high tensile strength, allowing long, complex conveyor paths with multiple straight runs and curves driven by a single motor. These systems are highly valued in the food processing, beverage bottling, and pharmaceutical industries due to their easy-to-clean design.
For heavy manufacturing and warehousing, the live roller configuration is the preferred solution. Driven by chains, poly-V belts, or line shafts, these systems excel at moving heavy cartons, tote boxes, and industrial pallets. They allow for zero-pressure accumulation, meaning products can be stopped on the curve to control line flow without stopping the drive motor, preventing product collisions.
Conveyor Type | Maximum Load Capacity | Common Speed Range | Best Suited Industry |
Fabric Belt Curve | Light to Medium (up to 50 kg/m) | 0.5 to 2.5 m/s | Logistics, Packaging, Airports |
Modular Plastic Curve | Medium (up to 120 kg/m) | 0.2 to 1.2 m/s | Food Processing, Bottling |
Live Roller Curve | Heavy (up to 1500 kg/m) | 0.1 to 1.5 m/s | Automotive, Warehousing, Heavy Industry |
Procuring an industrial-grade turning system requires careful evaluation of key engineering parameters, including the inner radius, degree of turn, total load capacity, and environmental conditions. Miscalculating these values can lead to accelerated component wear, product damage, or motor failure.
First, engineers must determine the exact layout requirements, specifically the degree of turn (commonly forty-five, ninety, or one hundred and eighty degrees) and the inside radius. The inside radius must be large enough to allow the longest handled product to pass through without its corners striking the guardrails. The outer radius is determined by adding the conveyor width directly to the inside radius, which dictates the exact footprint space needed on the facility floor.
Second, the total weight and distribution of the product payload must be carefully calculated. For heavy industrial operations, choosing a robust Curved Roller Conveyor with reinforced cross-members ensures the system can support heavy loads without frame sagging. Engineers must also calculate the maximum load per roller to verify that the precision bearings can handle the combined radial and axial stresses during continuous operation.
Third, operational environment factors play a major role in material selection. Facilities dealing with chemical processing, food production, or high moisture must specify stainless steel frames and corrosion-resistant polymer components. Conversely, standard dry distribution hubs can use powder-coated carbon steel structures. System integration specialists must also ensure the control systems match existing straight lines, incorporating variable frequency drives (VFDs) to precisely synchronize speeds between separate conveyor sections.
Maintaining peak efficiency in curved material handling lines requires precise initial frame leveling, systematic belt tracking adjustments, and regular lubrication of high-stress bearings. Neglecting these core maintenance steps can lead to uneven belt wear, excessive motor strain, and unexpected system downtime.
During installation, technicians must use precision laser alignment tools to ensure both the inner and outer frames are perfectly level across both planes. If one side of the curve is lower than the other, gravity will amplify centrifugal forces, pulling the transport medium or products toward the lower side. This uneven weight distribution causes premature wear on the tracking guides and drive sprockets.
Because turning systems generate higher axial thrust than straight lines, the bearings within tapered rollers face continuous stress. Maintenance teams should establish a strict lubrication schedule, using high-viscosity lithium-complex greases for heavy steel rollers or food-grade lubricants where required. Sealed precision bearings should be checked regularly using thermographic cameras to detect overheating before a bearing seizes.
On fabric belt curves, checking the tracking system is a crucial routine task. The edge guide rollers or tracking profiles must be inspected for wear and material buildup. If the belt begins to climb the outer frame, the tensioning bolts on the inner and outer pulleys must be adjusted in small increments. For roller-driven systems, checking the tension of the connecting poly-V belts or drive chains prevents slippage and preserves torque delivery.
Industrial Maintenance Note: Always check for wear patterns on the inside radius of the frame. Excessive wear in this area usually indicates that the belt tension is too high, pulling the entire assembly inward against the structural guides.
Integrating a high-performance Curved Roller Conveyor into an existing B2B material handling system provides major benefits for facility space management and production throughput. By applying tapered roller geometry and differential speed mechanics, these systems eliminate the common bottlenecks that happen when moving goods around corners.
Investing in high-quality components, calculating precise turn radii, and following a strict preventative maintenance routine ensures long-term operational reliability. For automated distribution hubs or manufacturing assembly lines, choosing an engineered curved solution is a proven step toward building a highly efficient, continuous logistics pipeline.
Product slippage is primarily prevented by using precision tapered rollers, which maintain a consistent speed gradient across the conveyor width. Additionally, selecting high-friction surface materials, such as rubber-lagged rollers or textured high-grip belts, ensures products stay securely in place during high-speed transitions.
Yes, modular plastic chain curves can often be integrated into long straight runs driven by a single motor, provided the total chain pull calculation stays within safe limits. However, for heavy-duty applications or complex layouts, using a dedicated independent motor for the Curved Roller Conveyor section allows for better speed tuning and less mechanical strain.
The minimum radius depends heavily on the conveyor type and product dimensions. Fabric belt curves can achieve tight inside radii as low as 300 mm, while heavy-duty live roller curves generally require a larger radius to accommodate tapered rollers and heavy payloads safely.
