A 90-degree curve conveyor system is a specialized material handling solution designed to reorient the direction of unit loads by 90 degrees within a restricted footprint, utilizing positive tracking mechanisms to maintain product alignment, orientation, and speed without manual intervention.
Section | Summary |
Fundamental Principles of 90-Degree Curve Conveyors | Explains the structural definition, mechanical principles, and core orientation benefits of using curved belt systems in restricted automated layouts. |
Key Structural Components and Technical Specifications | Details the mechanical architecture including conical pulleys, engineered drive systems, structural frame materials, and belt guide assemblies. |
Primary Operational Advantages in Industrial Applications | Outlines spatial optimization, gentle product handling, continuous throughput capabilities, and low friction operational benefits. |
How Curved Conveyors Maintain Product Orientation | Analyzes centrifugal forces, differential speed dynamics, side guide technology, and positive tracking mechanisms that keep items aligned. |
Engineering Layout and Space Optimization Strategies | Discusses mathematical curve selection, inner radius choices, angle options, and spatial integration within complex facilities. |
Essential Maintenance Standards and Preventive Protocols | Outlines inspection routines, belt tensioning procedures, pulley bearing lubrication, and structural alignment checks for long-term reliability. |
A 90-degree curve conveyor is an engineered transport module that redirects materials across a quarter-turn angle, relying on specialized drive geometry, conical pulleys, and positive belt guidance to transition loads smoothly between non-parallel production lines.
In high-throughput industrial environments, linear transport lines must inevitably change direction to accommodate spatial limits, process equipment, or facility walls. Traditional methods of right-angle transfer—such as pop-up chain transfers, pneumatic pusher plates, or turntable arrangements—introduce mechanical complexity, require intermittent stopping, and often lead to orientation loss or physical package damage. A well-designed 90-degree curve solves this challenge by enabling continuous motion transfers. By maintaining constant linear velocity across the entire width of the conveying surface, these systems prevent item slippage and preserve precise package orientation throughout the turn.
From a design perspective, achieving a smooth 90-degree turn requires balancing rotational force with precise mechanical tracking. When a flat belt is forced into a curve, the outer perimeter must travel a significantly longer distance than the inner perimeter within the exact same timeframe. To manage this differential speed, specialized engineering principles are applied. Tapered or conical end pulleys are utilized alongside segmented or pre-curved belt materials. This geometric compensation ensures that the tangential velocity at any point across the belt matches the path length, effectively eliminating shear stress and preserving belt alignment under load.
In our internal design trials and client deployment feedback, we consistently observe that facilities shifting from right-angle pushers to continuous curved transport reduce product turnover damage by over 98%. When designing layouts for automated distribution centers, European logistics operators almost universally demand a continuous Curved Belt Conveyor system because it preserves high line speeds without sacrificing structural floor space or risking item jams.

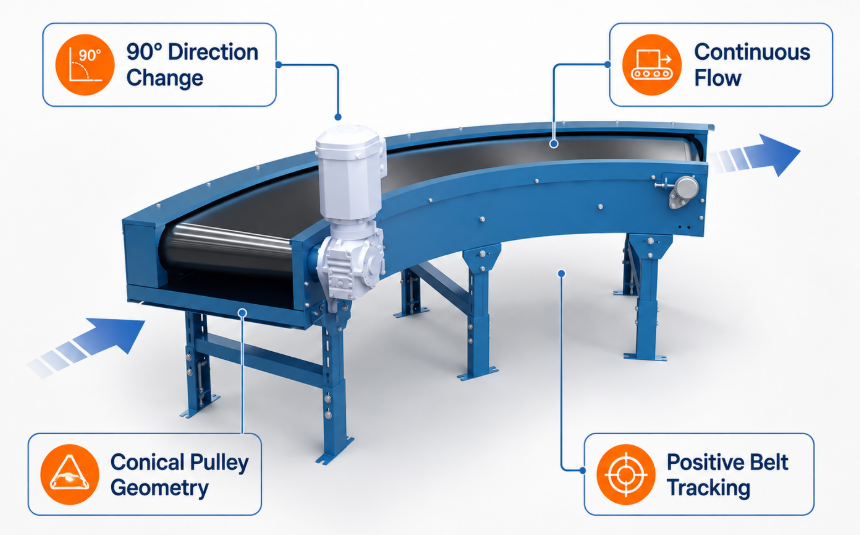

The core structure of a 90-degree curve conveyor consists of a rigid curved frame, conical drive and return pulleys, a specialized curved belt, and a positive edge-guidance tracking mechanism that prevents radial migration.
Understanding the individual mechanical components reveals why these systems excel under tough operational parameters. The framework is typically fabricated from laser-cut carbon steel, stainless steel for hygienic environments, or extruded heavy-duty aluminum. The drive system utilizes shaft-mounted motor reducers or motorized drive rollers specifically calculated for low noise, high torque, and precise speed control across variable frequency drives.
Component Part | Technical Function | Standard Material / Specification |
Structural Mainframe | Provides rigid support and structural integrity under dynamic load | Powder-coated carbon steel, 304/316 stainless steel, or extruded aluminum |
Drive & Tail Pulleys | Transfers rotational torque and accommodates differential outer/inner speeds | Precision-machined conical steel with vulcanized rubber or polyurethane lagging |
Conveying Belt Surface | Carries unit loads around the radius with minimal deformation | Monofilament polyester with PVC/PU top coating, or modular plastic links |
Edge Tracking Assembly | Counters radial forces pulling the belt toward the inner center | Sealed precision ball bearings riding on a continuous outer perimeter rail |
Support Deck | Supports the load-bearing belt surface with low friction | High-density polyethylene (HDPE) or galvanized steel slide bed plates |
Drive Motor Unit | Supplies mechanical power via direct gear connection or timing belt | Right-angle helical bevel gearmotor or direct-drive motorized pulley |
During structural engineering, the edge tracking assembly represents the most critical mechanical feature. Because tensile forces naturally pull the belt toward the inner radius during operation, a series of guide bearings, bead strips, or chain-guided edges are fastened to the outer margin of the belt. These guide elements engage a rigid channel along the outer frame, absorbing radial vectors and keeping the belt centered regardless of load placement.
The selection of belt materials and drive pulley taper must directly reflect the physical properties of the items being transported. For example, high-speed sorting facilities handling mixed parcels require friction-backed PVC belts with reinforced guide rims. Conversely, food processing facilities operating in washdown zones require modular plastic curves or FDA-compliant polyurethane surfaces.
Belt Tensioning and Alignment Maintenance Tip: Always check edge-guide bearing clearance under full load conditions. Radial tension on a curved system concentrates on the outer tracking bearings; maintaining a 1.0mm to 1.5mm operational tolerance between the guide rail and bearing outer race prevents thermal expansion binding and extends tracking bearing life significantly.
Key operational advantages include maximizing floor space efficiency, ensuring gentle product handling, maintaining continuous high-speed material flow, and reducing total system power consumption.
Implementing a 90-degree curve offers distinct benefits over alternative directional transfer techniques. By converting straight lines into efficient L-shaped, U-shaped, or serpentine continuous flow patterns, processing plants optimize every square meter of available floor space.
Spatial Optimization: Curved modules enable compact plant layouts by eliminating long transition runs or oversized mechanical transfer tables, allowing machinery to be positioned closer together.
Continuous Throughput Acceleration: Unlike intermittent stop-and-go right-angle transfers, curved systems maintain uninterrupted transport speeds up to 80 meters per minute or higher, preventing upstream line backing.
Gentle Product Handling: By eliminating impact forces associated with pneumatic pushers or mechanical stop gates, fragile packages, light cartons, and unsealed containers navigate direction changes without tipping or deformation.
Reduced Energy Consumption: Continuous rotary motion requires significantly less electrical peak power compared to pneumatic transfers or multi-axis servo pop-up mechanisms, yielding lower utility costs.
Low Acoustic Footprint: Smooth mechanical rolling motion and precision bearings operate at sound levels well below 65 dB(A), creating a safer, quieter working environment for operators.
Minimal Maintenance Overhead: Built with fewer high-wear moving parts than complex multi-belt pop-up transfer tables, continuous curves experience lower component fatigue and extended mean time between failures (MTBF).
In modern high-speed logistics centers, throughput rates frequently exceed 3,000 packages per hour. Under these intense conditions, mechanical right-angle pushers reach their physical limit and cause high rates of product damage. Integrating a continuous Curved Belt Conveyor allows operators to maintain high linear speeds without sacrificing gentle product handling or mechanical uptime.
From our practical project experience, European automotive tier-one suppliers favor standardized curved modules with standardized inner radii. This standardization allows quick component swapping and ensures that spare drive units, bearings, and belts remain interchangeable across multiple assembly lines, dramatically lowering factory lifetime operational costs.
Curved conveyors maintain product orientation through differential belt surface speeds and positive edge tracking mechanisms, which together prevent package rotation, skewing, or centrifugal displacement during execution of the turn.
When an item enters a curve, its outer edge must cover a greater arc length than its inner edge over the exact same time interval. On a standard flat conveyor belt forced around a curve, this speed discrepancy causes the package to twist, skew, or slide out of alignment. A 90-degree curve prevents this by ensuring that every point on the belt surface travels at an angular velocity directly proportional to its radius from the center point.
To maintain stable product orientation without slipping, three primary factors must be synchronized:
Conical Pulley Tapering: The drive and tail rollers are engineered with a specific taper ratio matching the inner and outer radii. The larger diameter at the outer edge generates a higher linear speed ($V_{outer}$), while the smaller diameter at the inner edge produces a slower linear speed ($V_{inner}$), producing uniform angular velocity ($\omega$) across the line width.
High-Friction Top Surfaces: Top belt covers are specified with high coefficient-of-friction materials (such as textured NBR rubber or soft grip-top PVC) to hold the bottom of the package firmly against lateral sliding forces.
Positive Radial Restraint: Radial forces try to pull the belt inward toward the center of the arc. High-precision outer edge guide bearings or chain profiles continuously absorb these forces, holding the belt flat and preventing tracking distortion.
When items pass through the curve, the matching velocity profile ensures that the leading edge of the product stays perpendicular to the flow vector. As a result, packages exit the 90-degree turn in the exact relative orientation they entered. This precise tracking capability is essential upstream of automated barcode scanners, inline checkweighers, robotic palletizers, and high-speed print-and-apply labeling stations, where unexpected item rotation causes severe reading errors or process failures.
Selecting the correct 90-degree conveyor layout requires evaluating the inner radius, effective width, total load capacity, operational speed, and the physical clearances needed to prevent item overhang during transfer.
When integrating a curved section into an existing factory floor plan, engineers must balance space savings against structural stability. Specifying an overly tight inner radius reduces footprint but increases radial stress on guide bearings and risks item instability. Conversely, selecting a generous radius improves high-speed stability but consumes valuable floor space.
Parameter Variable | Selection Considerations | Typical Engineering Standard Range |
Inner Radius | Dictates footprint tightness and radial bearing load forces | 300 mm to 1200 mm based on load dimensions |
Effective Width | Must exceed maximum product diagonal dimension to avoid overhang | 400 mm to 1500 mm usable carrying surface |
Turning Angle | Angle of direction change (90° standard, 45°/180° options) | 30° to 180° custom configuration options |
Conveying Speed | Matched to upstream and downstream continuous processing lines | 10 m/min up to 100 m/min variable speed |
Max Load Capacity | Total combined weight supported on the curved deck simultaneously | 30 kg/m² light duty to 150 kg/m² heavy duty |
To determine the ideal curve footprint, design engineers evaluate the maximum diagonal length of the largest item to be transported. The effective belt width must comfortably accommodate this diagonal dimension, plus a safety margin of at least 50 mm on both sides, to prevent package corners from striking frame side guards during the turn.
If your process layout involves tight spatial constraints or challenging material handoffs, exploring custom engineered variations like a high-density Curved Belt Conveyor provides flexible design options. Incorporating integrated nosebar transfers at the infeed and discharge ends allows small items to transition smoothly across tight roller gaps without stalling.
Key questions experienced engineers evaluate during site assessment include:
Why is the drive motor positioned on the outer or inner frame boundary? (Outer placement simplifies motor servicing access, while inner placement minimizes the external spatial footprint.)
What feature do international logistics clients request most frequently? (Quick-release belt mechanisms that allow belt replacement without requiring total disassembly of the main structural frame.)
How do we address extreme high-speed stability? (By adding dynamic frequency drives with smooth acceleration and deceleration curves, mitigating inertial slippage at entry points.)
Establishing a rigorous preventive maintenance schedule—focused on edge guide bearing lubrication, belt tension tracking, conical roller wear checks, and bed cleanliness—ensures long operational life and prevents unexpected line shutdowns.
Because a curved conveyor experiences combined axial, radial, and torsional stresses, its preventive maintenance requirements differ significantly from standard straight conveyors. The most critical failure point in any curved unit is the edge tracking mechanism. If bearings seize or guide rails wear excessively, radial tension pulls the belt off alignment, causing edge fraying and rapid belt destruction.
Maintenance technicians should institute a structured inspection routine:
Daily Visual Inspections: Inspect the edge-guide tracking zone while the line is running. Check for abnormal vibration, high-frequency bearing noise, or dust generation along the outer guide rail. Verify that the belt transitions smoothly across the end nosebars without catching.
Weekly Debris Removal: Debris, tape residue, and packaging fragments tend to accumulate under the curved slider deck and within the outer bearing channel. Clean these zones thoroughly using industrial vacuums and non-solvent degreasers to maintain low sliding friction.
Monthly Bearing Lubrication: Lubricate sealed edge-guide bearings and main pulley pillow blocks using high-grade lithium-complex grease. For washdown food environments, use NSF H1 food-grade synthetic grease.
Quarterly Tension and Pulley Alignment: Measure belt tension across the inner and outer arcs. Ensure the conical drive pulley surfaces remain free of glaze, oil contamination, or rubber lagging wear.
Bi-Annual Frame Structural Audit: Inspect all structural support legs, frame cross-bracing bolts, and floor anchors. Verify that floor settlement or structural impacts have not shifted the turn module out of square with adjacent straight conveyors.
Drive Lagging Inspection and Maintenance Tip: Tapered steel pulleys rely on vulcanized rubber or polyurethane lagging to grip the belt under heavy loads. Check pulley lagging depth bi-annually; if rubber thickness wears down unevenly by more than 1.5mm across the taper profile, the differential speed relationship will fail, causing belt slippage and loss of tracking stability.
By selecting robust structural components, applying proper radial geometry, and maintaining strict preventive upkeep schedules, industrial facilities can rely on 90-degree curve conveyors to deliver efficient, continuous, and damage-free material handling across their entire operational footprint.
